OVERVIEW

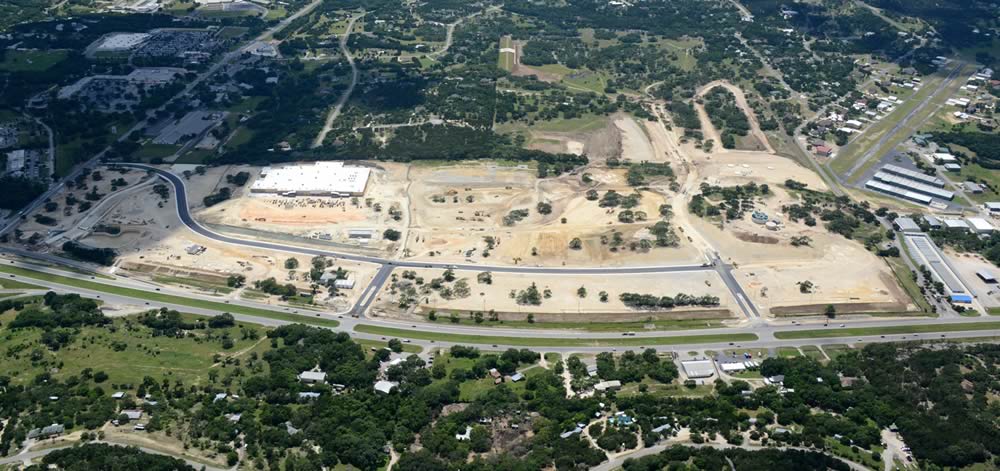

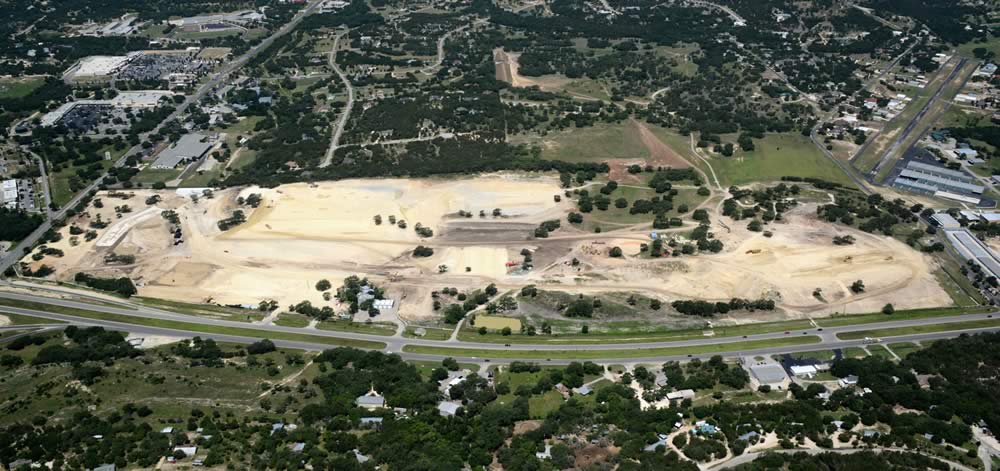

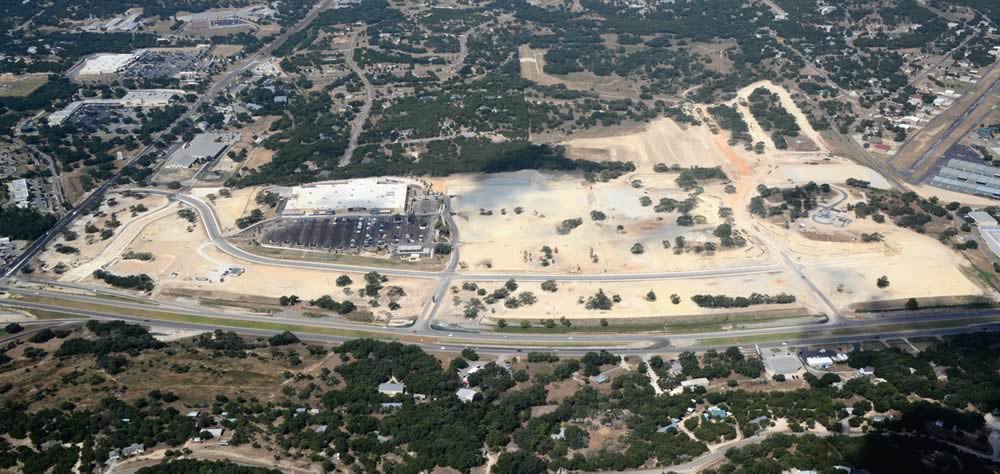

PROJECT OVERVIEW

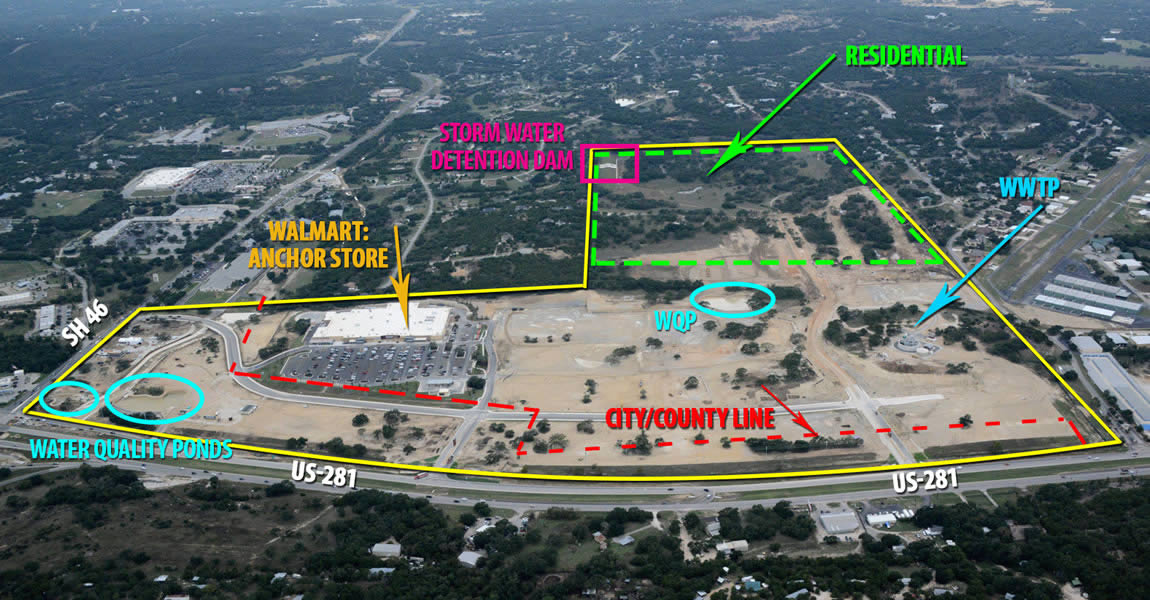

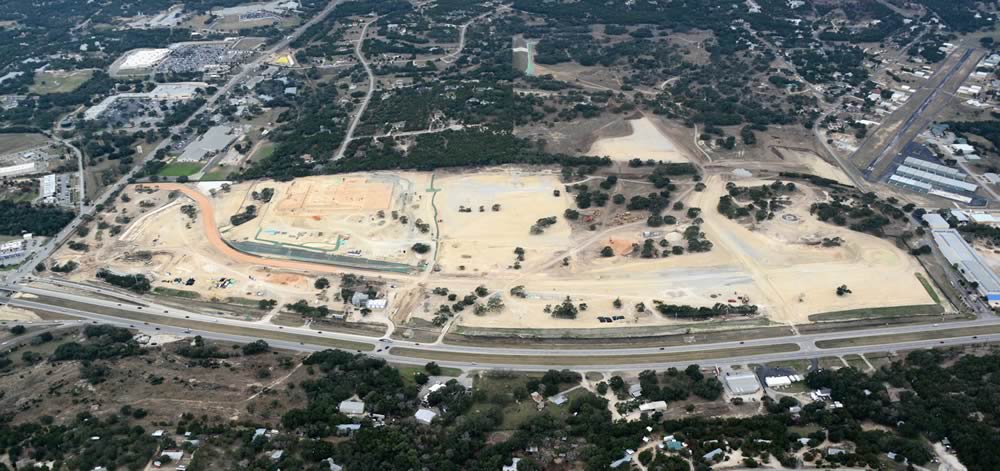

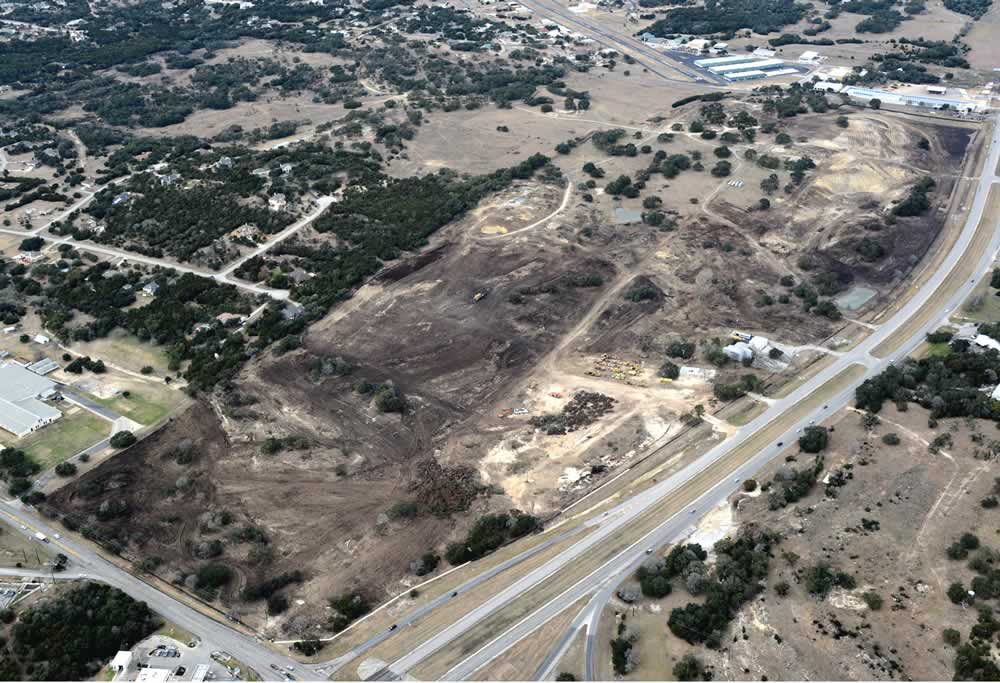

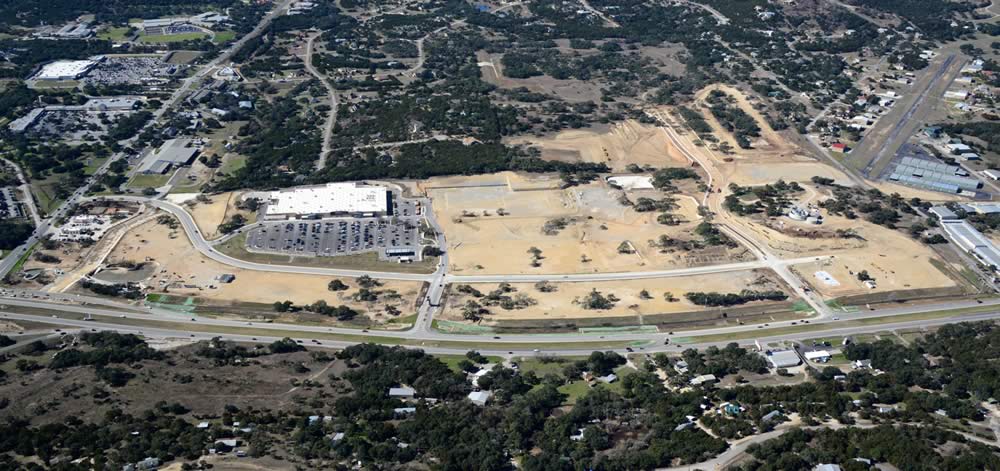

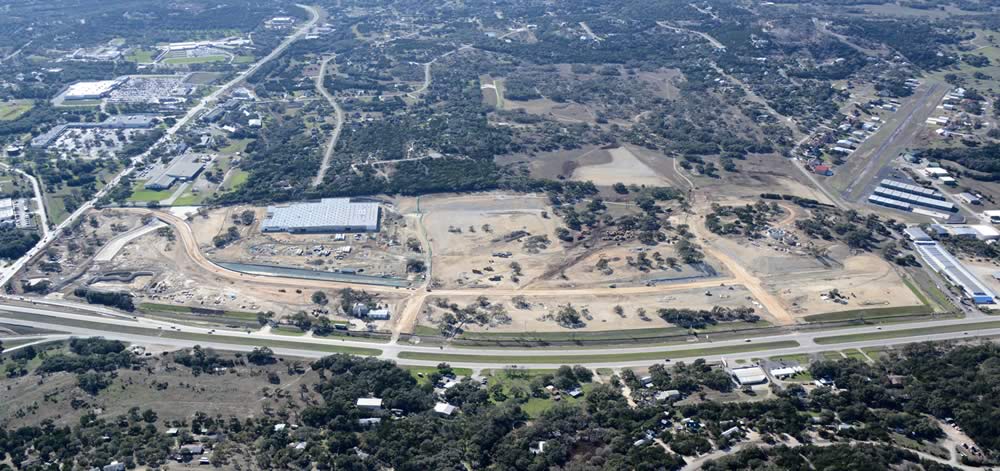

Approximately 250 acre development located at the NW corner of US Highway 281 and State Highway 46 in Bulverde, Texas, Comal County.
PROJECT DETAILS
- Multi & Single-Family Residential
- Commercial & Retail Pad Sites
- 2 Large Retail Anchors
- Office Park
- TXDOT Roadway Improvements
- Waste Water Treatment Plant (WWTP)
Completion Date: January 2016
Owner: SH-DJL Ventures
Engineer: MTR Engineers
Square Footage: ~250 Acres

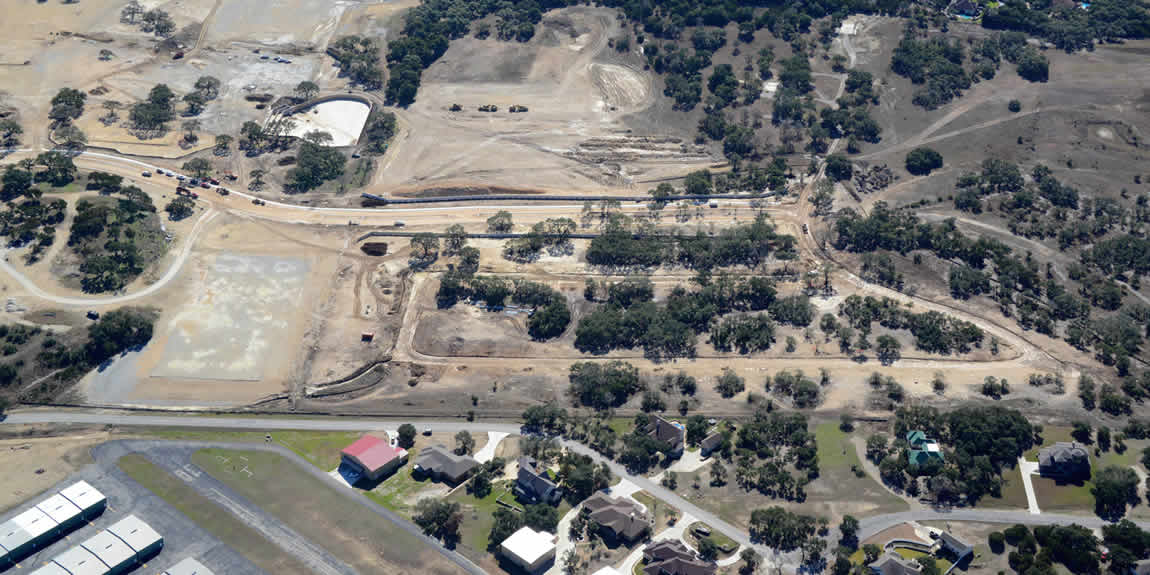

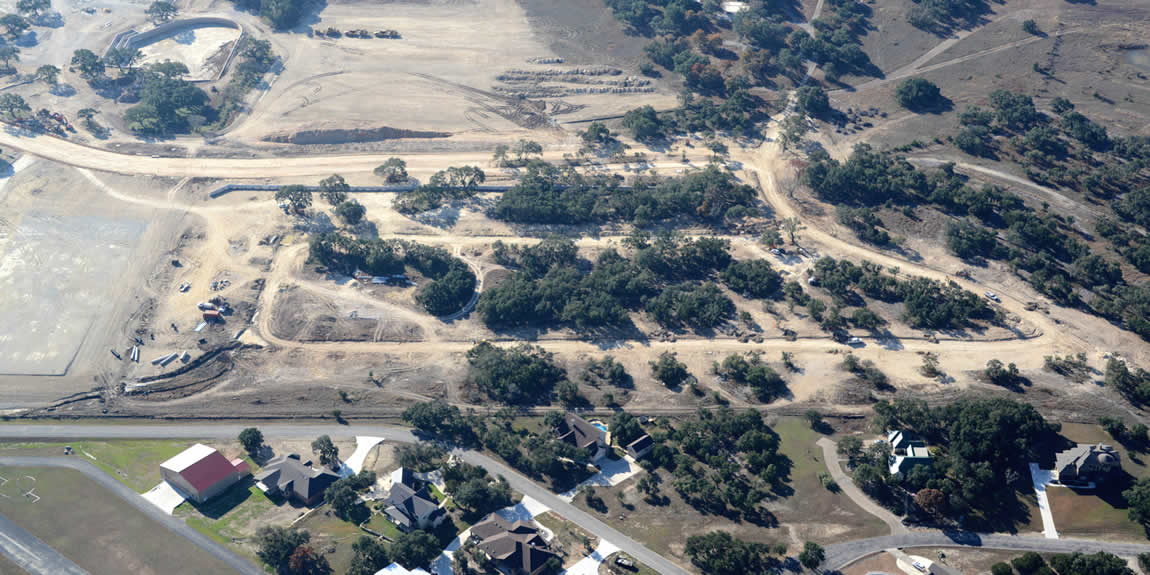

RESIDENTIAL

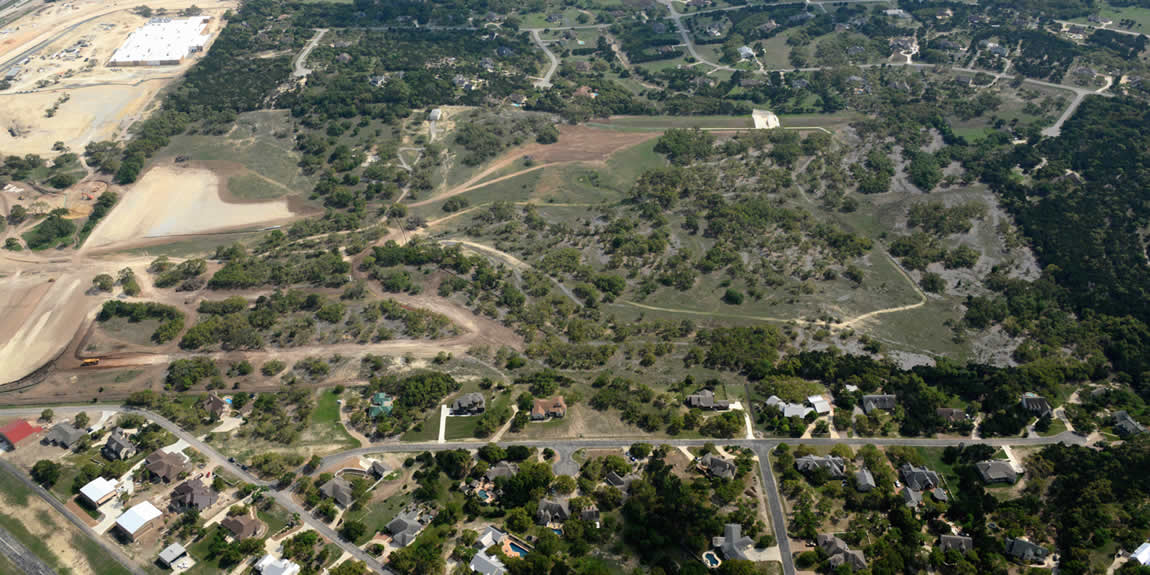

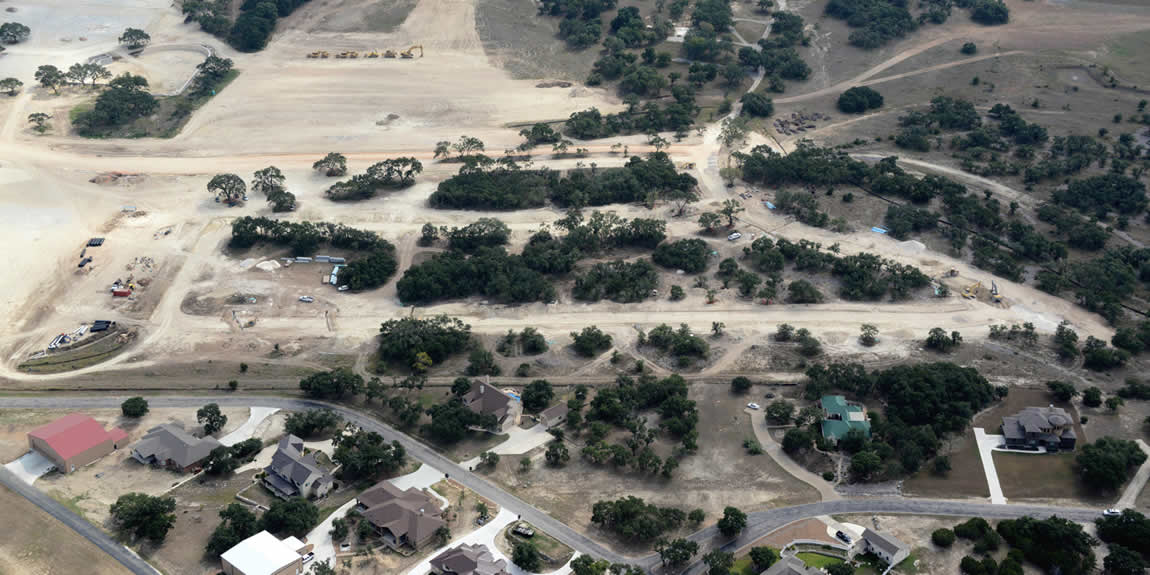

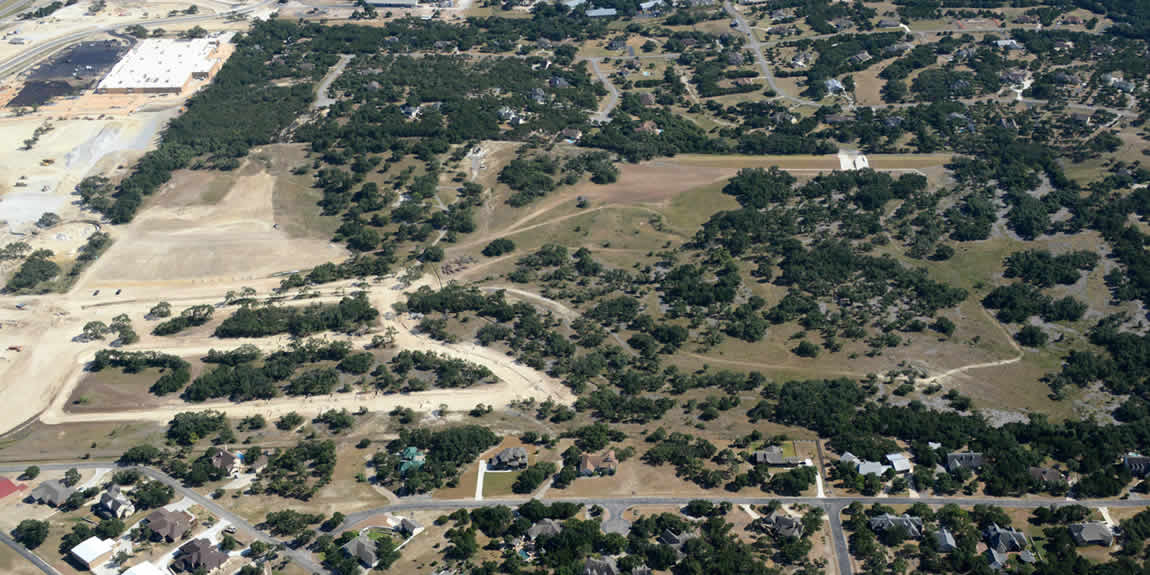

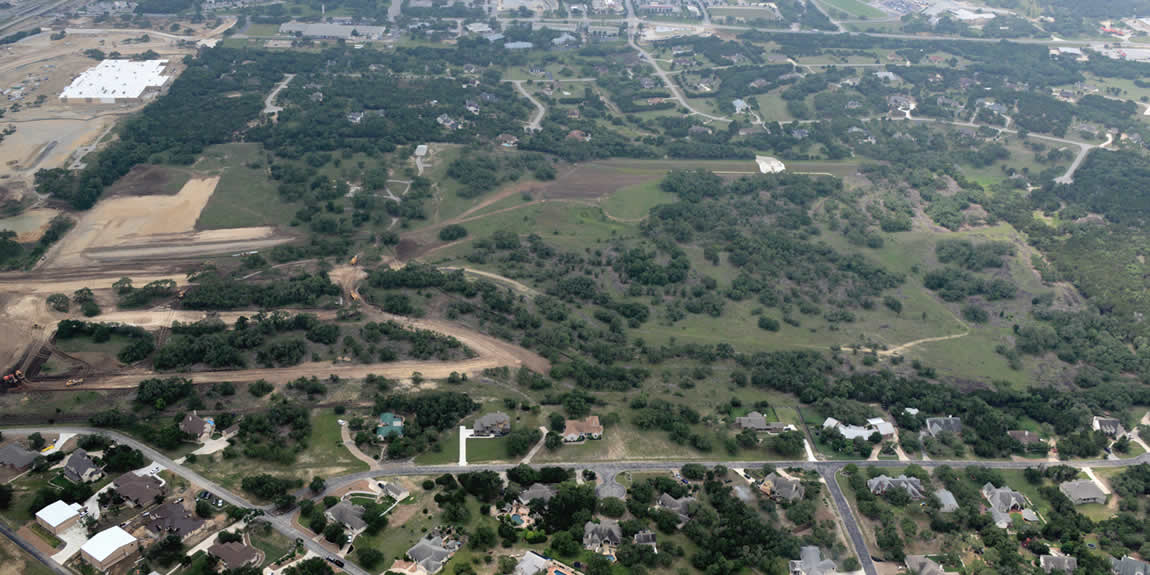

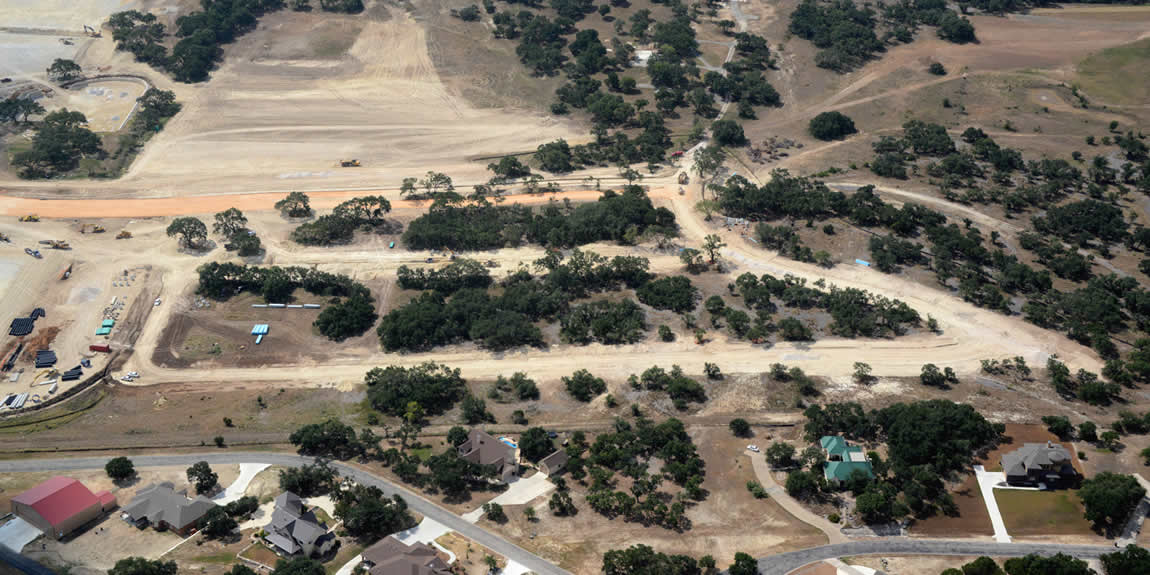

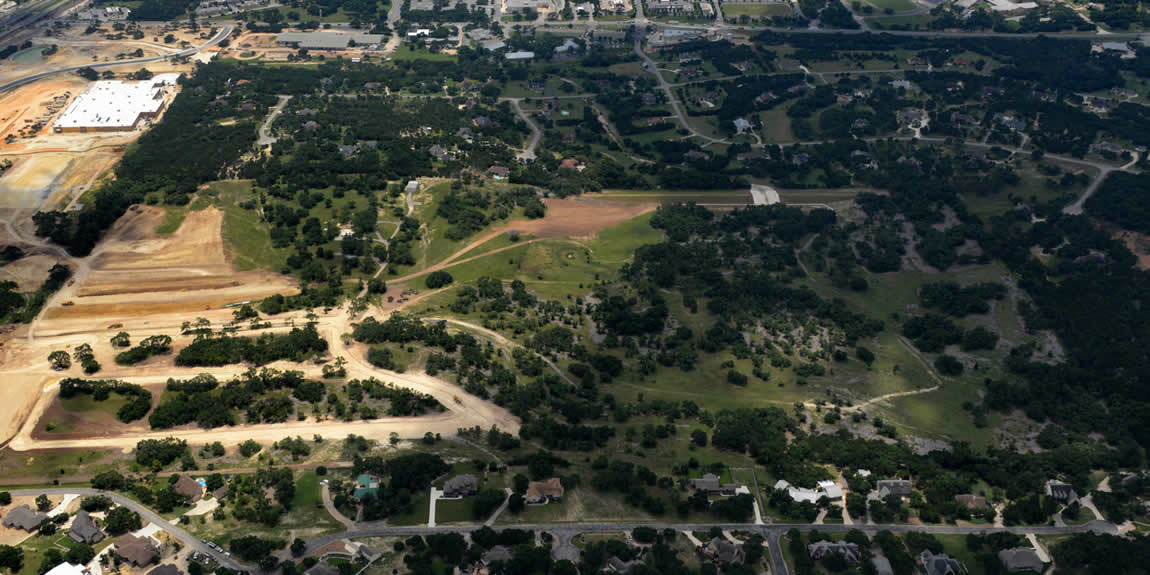

RESIDENTIAL UNIT 1

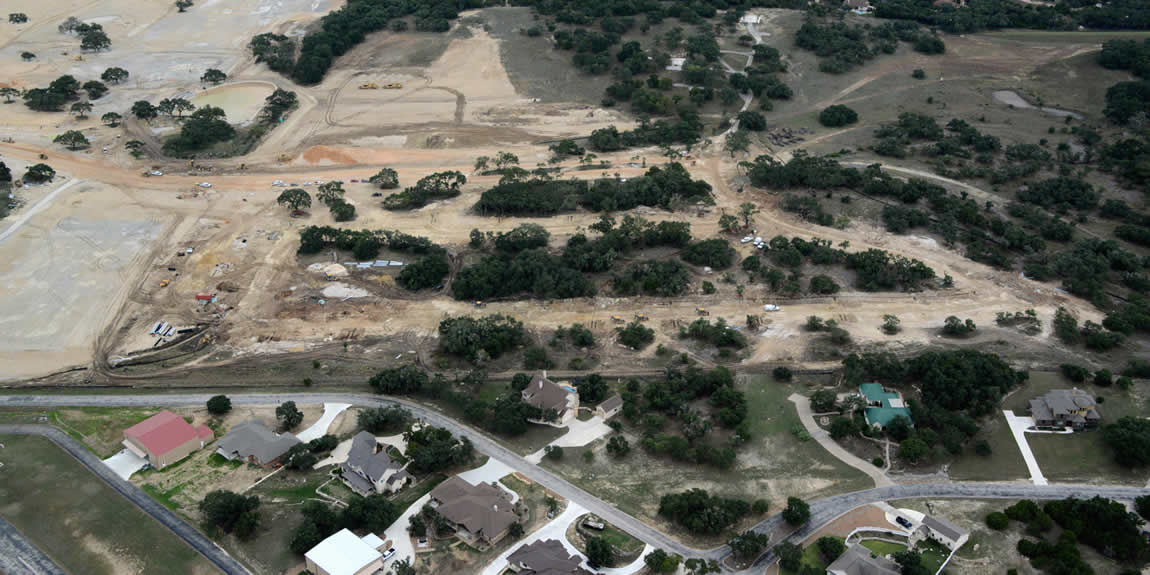

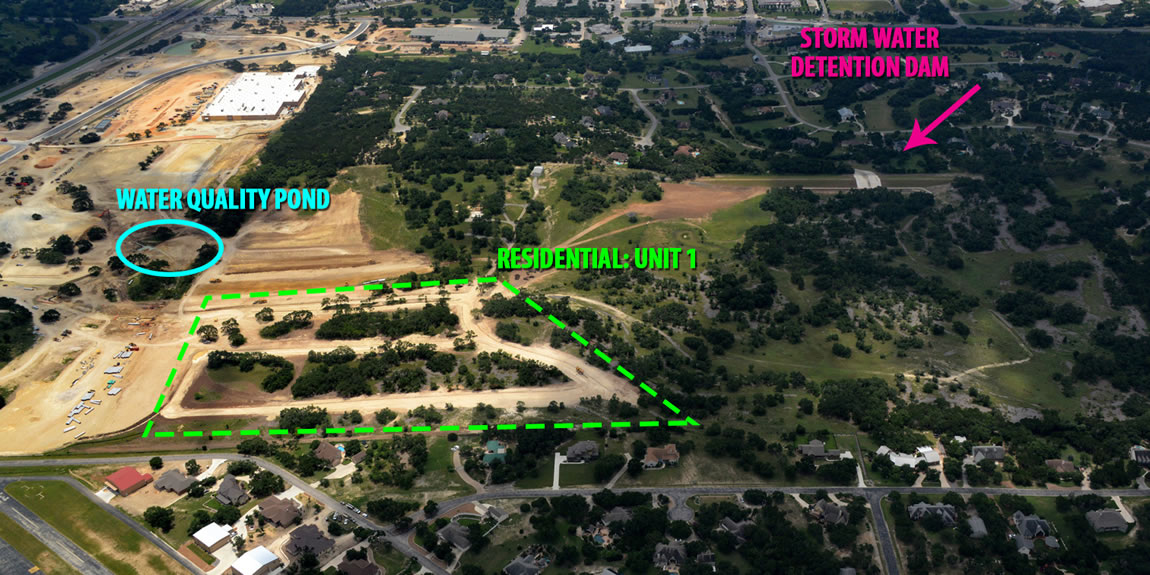

Middleman Construction Company developed the land and infrastructure of the Residential portion of Singing Hills for delivery to residential home builder, which included plans to mitigate flooding concerns.
PROJECT DETAILS
- Development includes construction of the primary collector street, residential feeder roadways, and all utility services.
- Storm Drain, Utility, and Electrical Infrastructure to service 73 residential lots.
- Scopes inclusive of:
- SWPPP & Erosion Control
- Measures: Earthwork, Tree Preservation, Onsite Street Improvements, Water Quality Pond #3, Utilities, and Electrical & Communication
- Strict delivery schedule, inclusive of liquidated damages, to client in anticipation of site delivery to residential home builder for construction of pre-sold residential homes.
Completion Date: November 2015
Owner: SH-DJL Ventures
Engineer: MTR Engineers
Square Footage: ~23 Acres
RETAIL 4

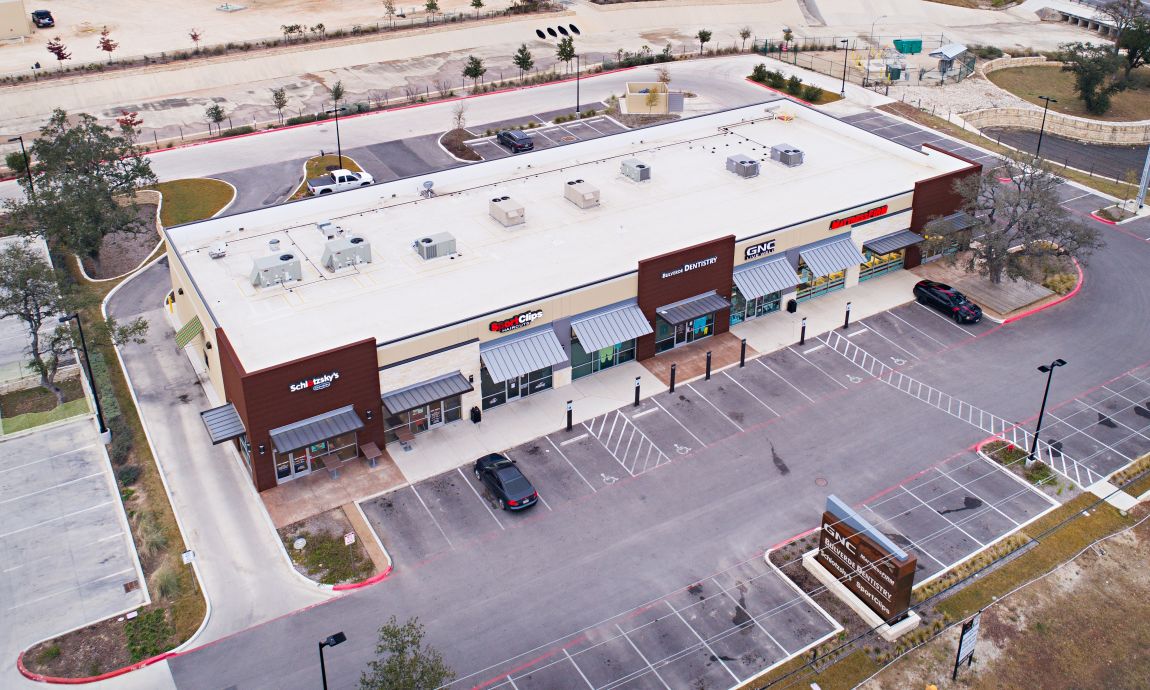

SINGING HILLS RETAIL 4

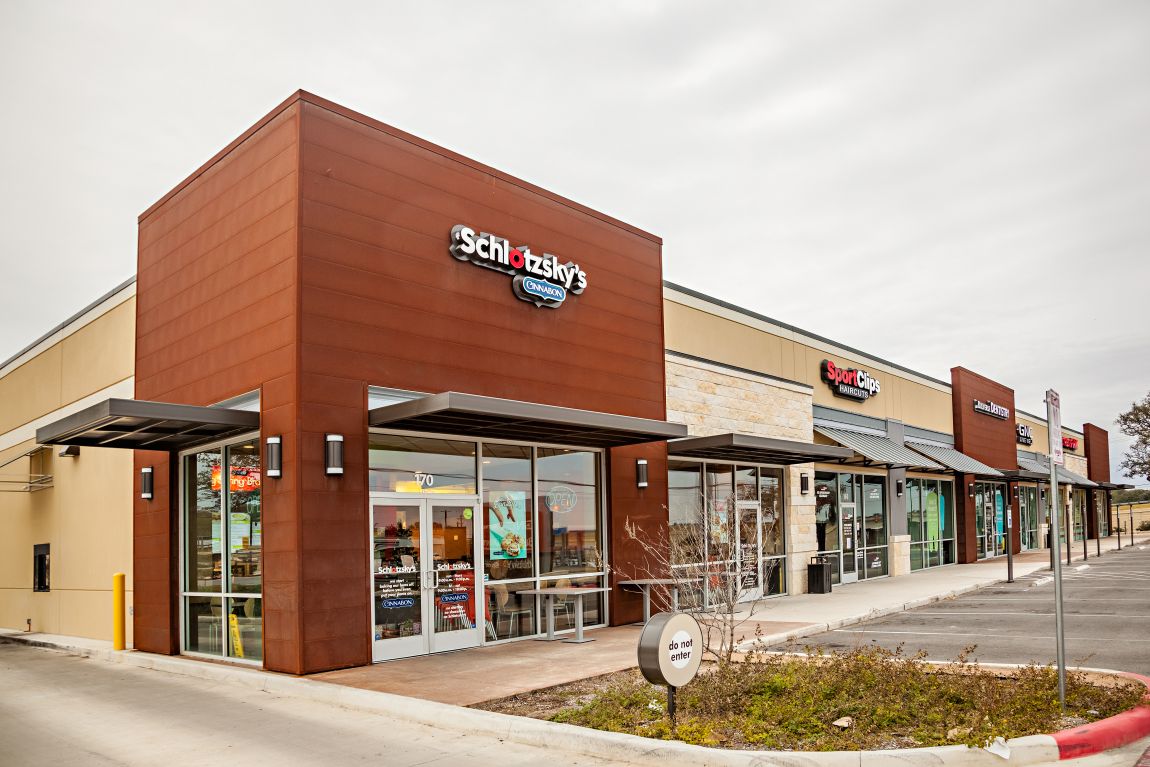

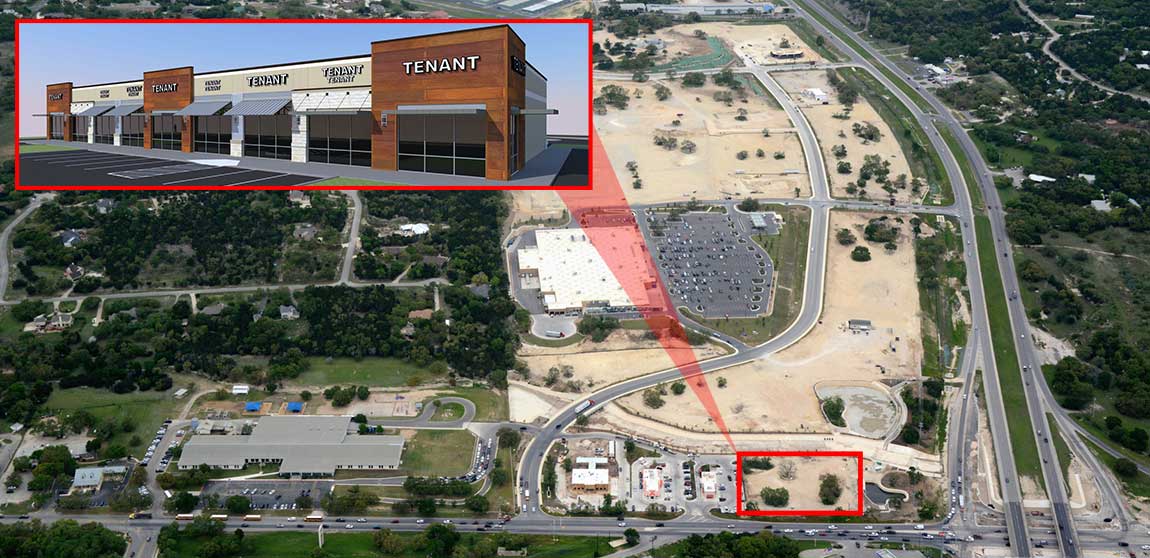

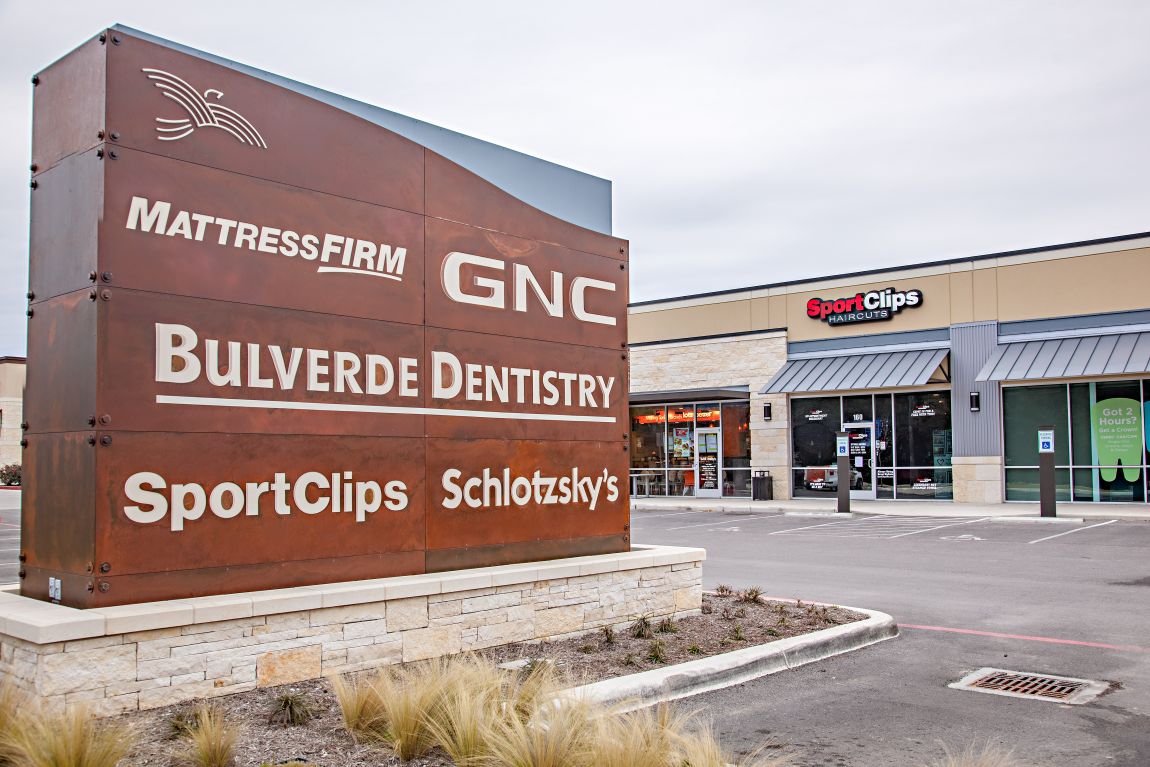

The Singing Hills Retail 4 building was the first of several developer retained tracts within the Singing Hills development to go vertical.
PROJECT DETAILS
This 12,666 sf retail building will set the architectural design guidelines for the balance of the retail tract sites. The anticipated completion for this project is in early January 2017.
Completion Date: January 2017
Owner: Singing Hills Retail 4, LLC
Engineer: MDN Architects
Square Footage: 12,666

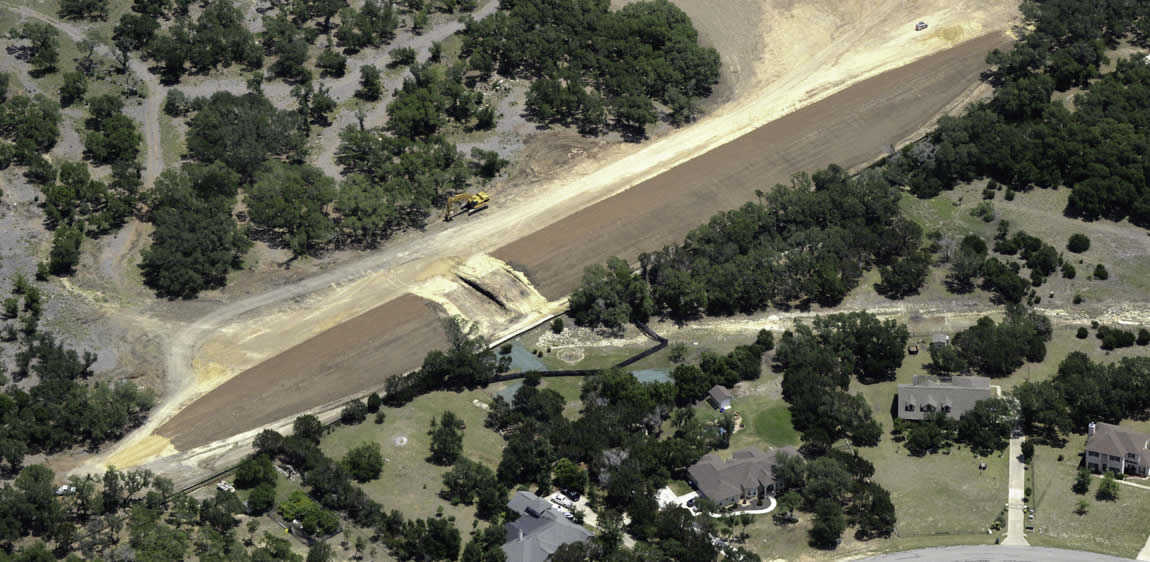

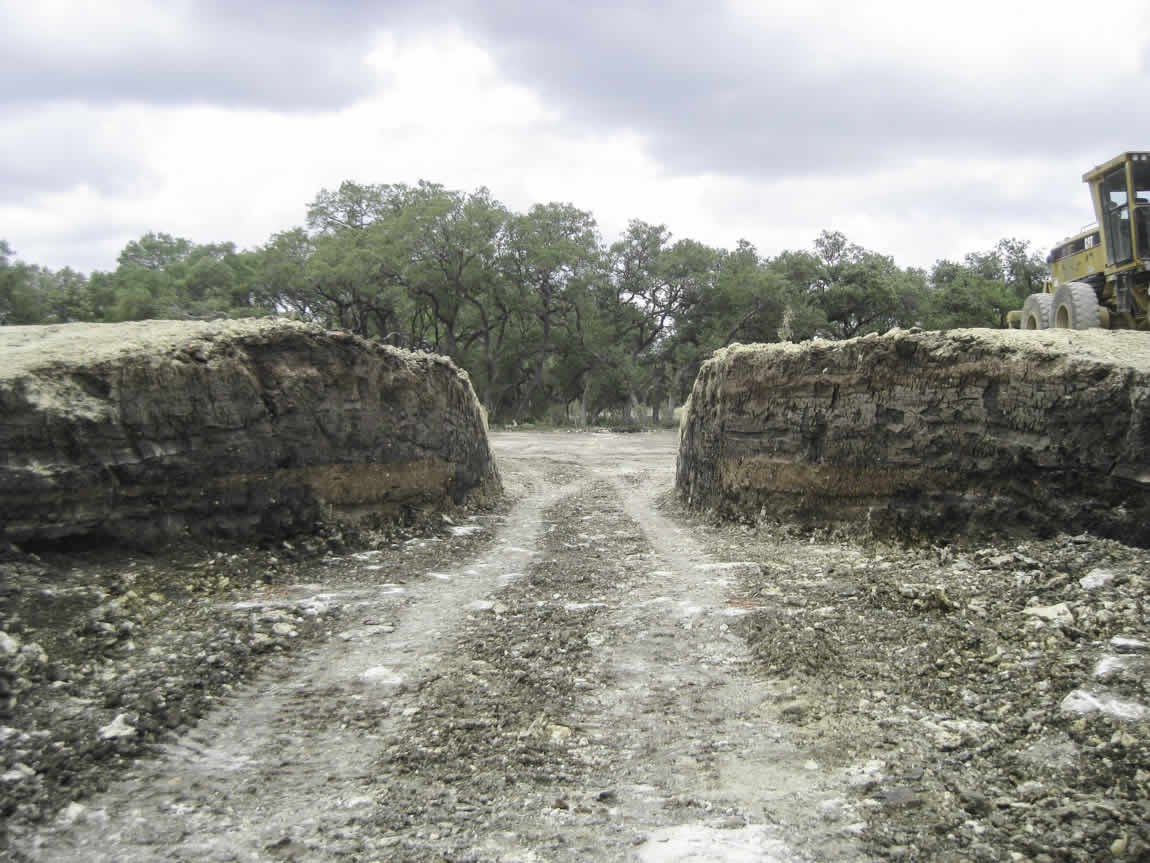

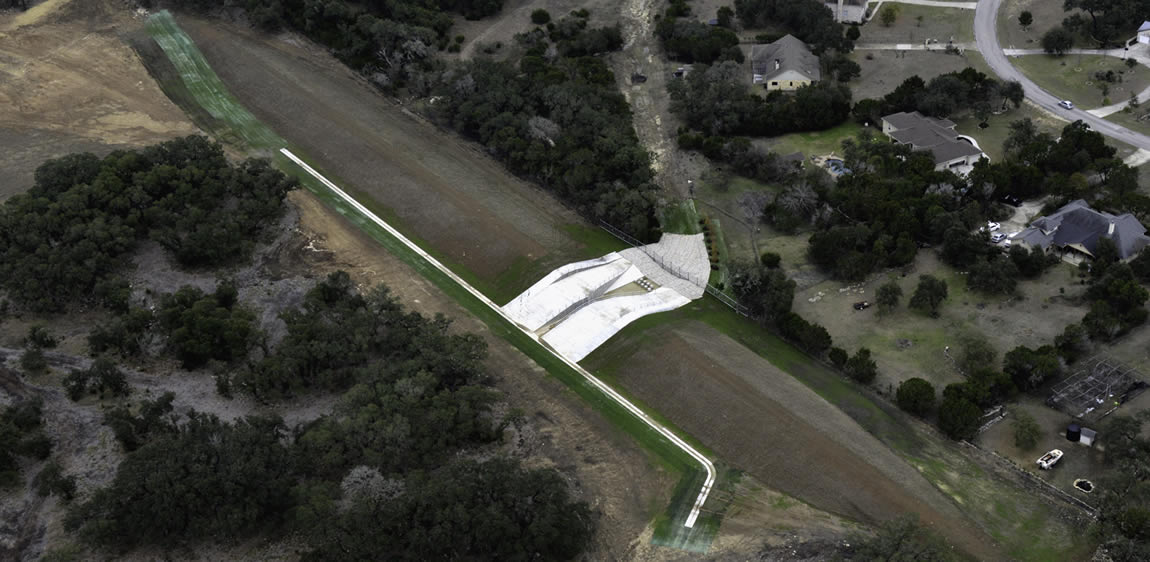

SWDF

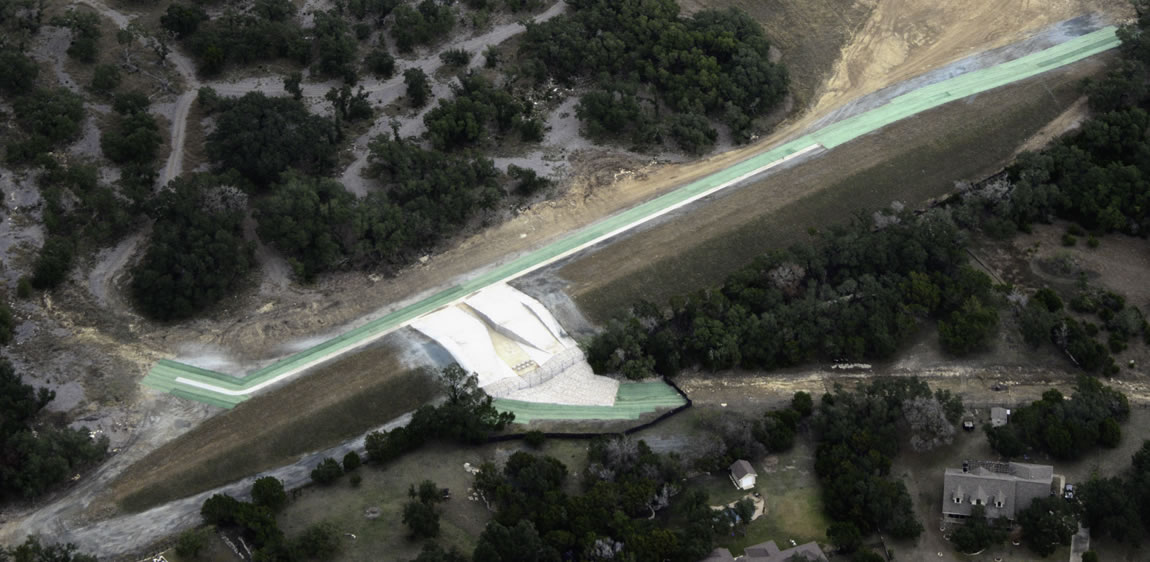

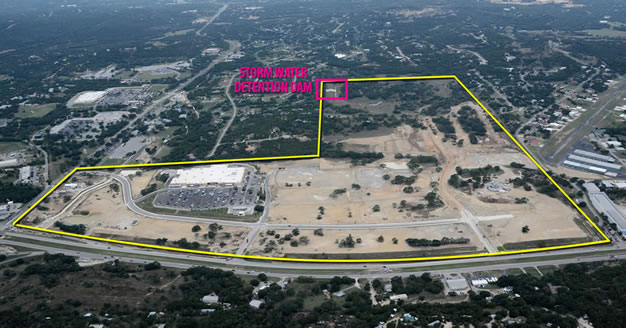

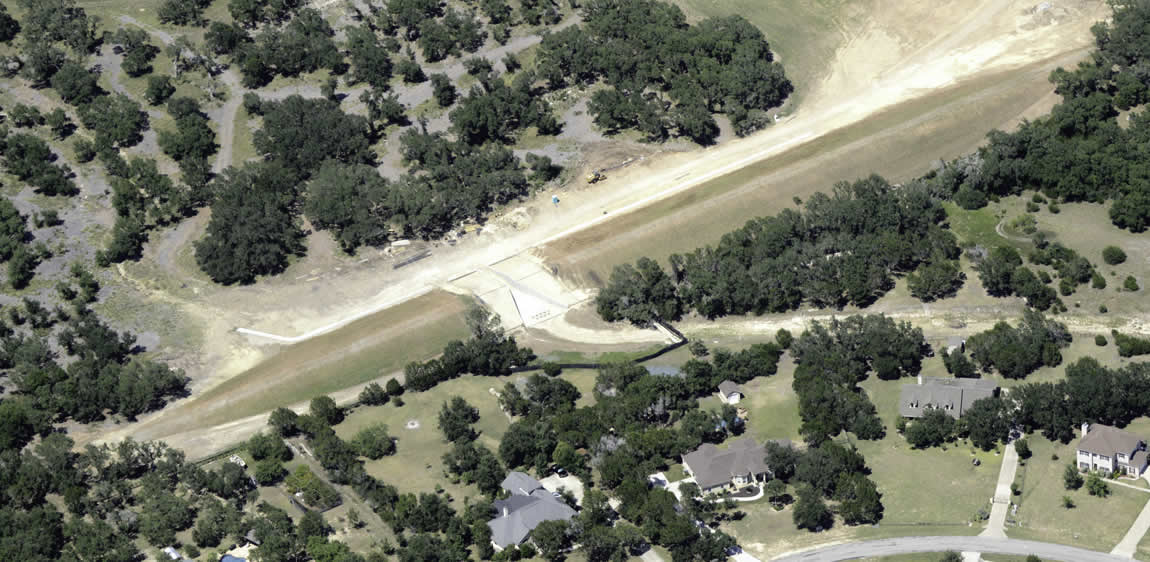

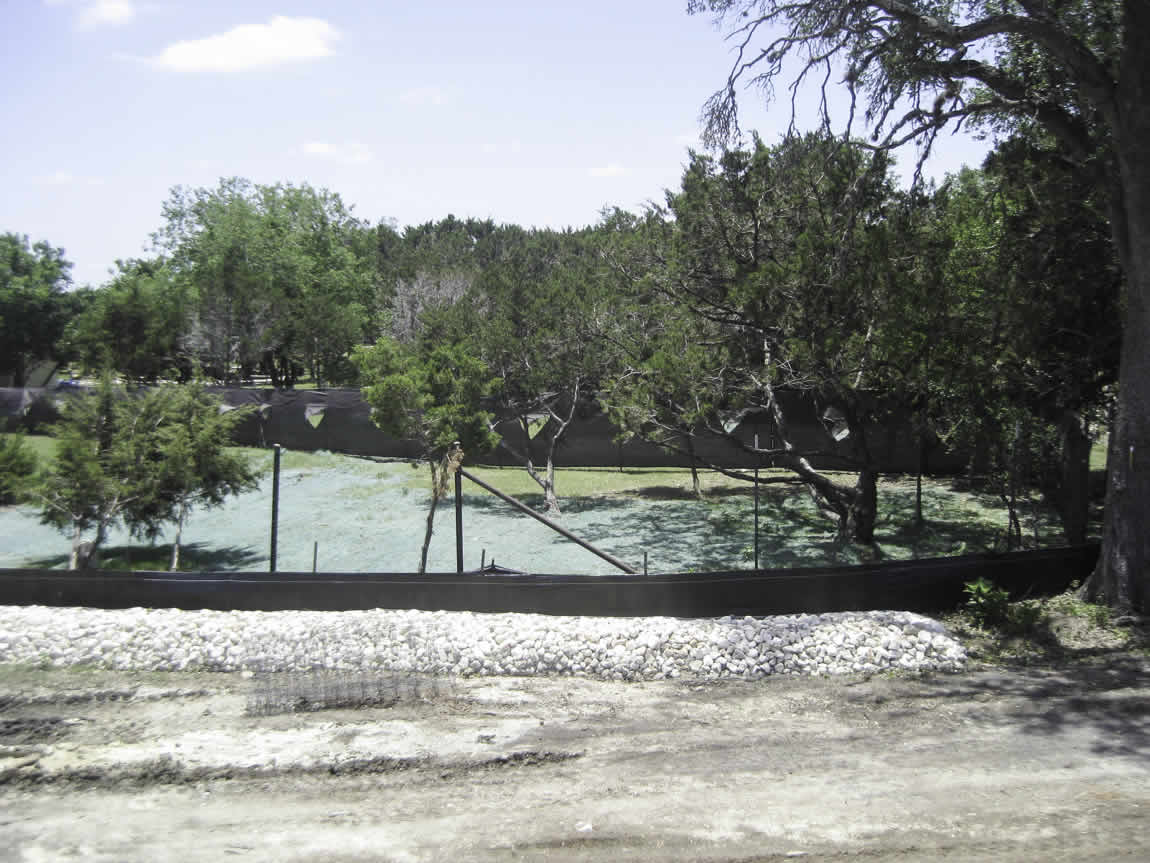

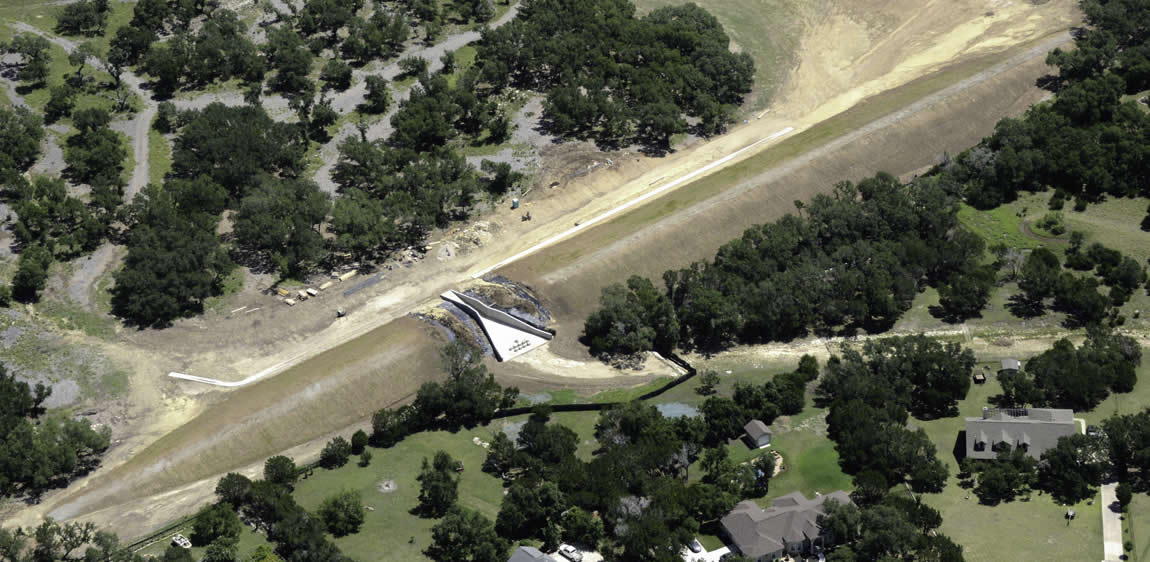

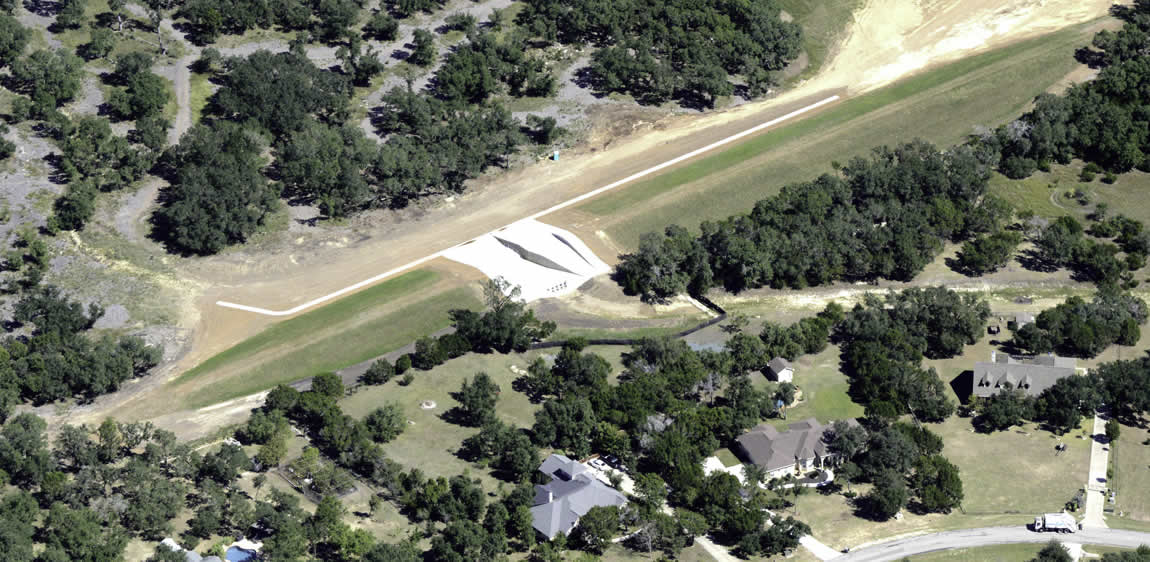

STORM WATER DETENTION FACILITY

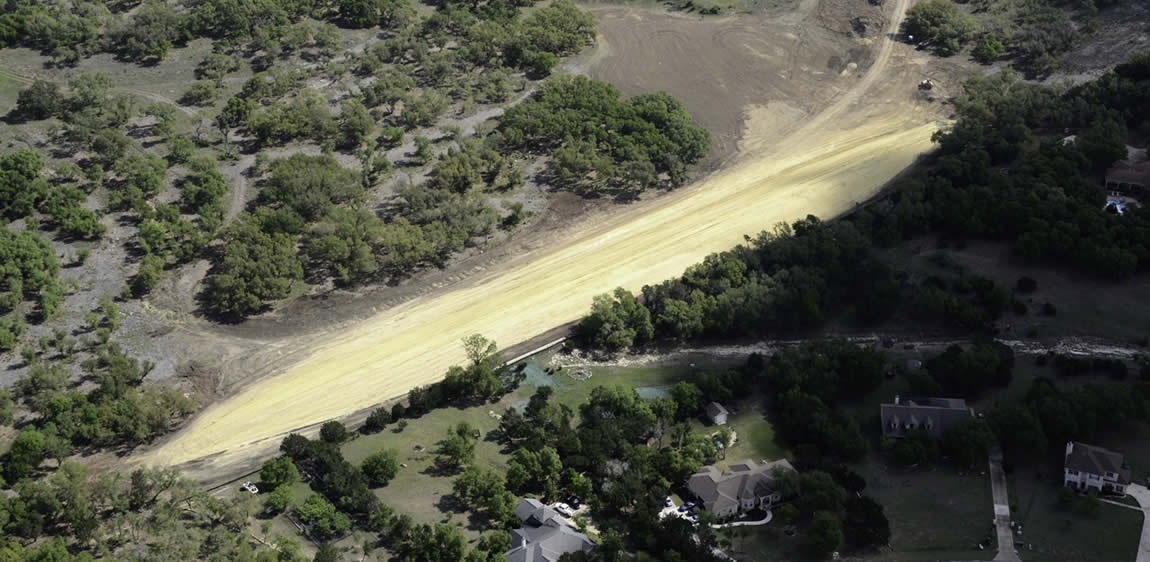

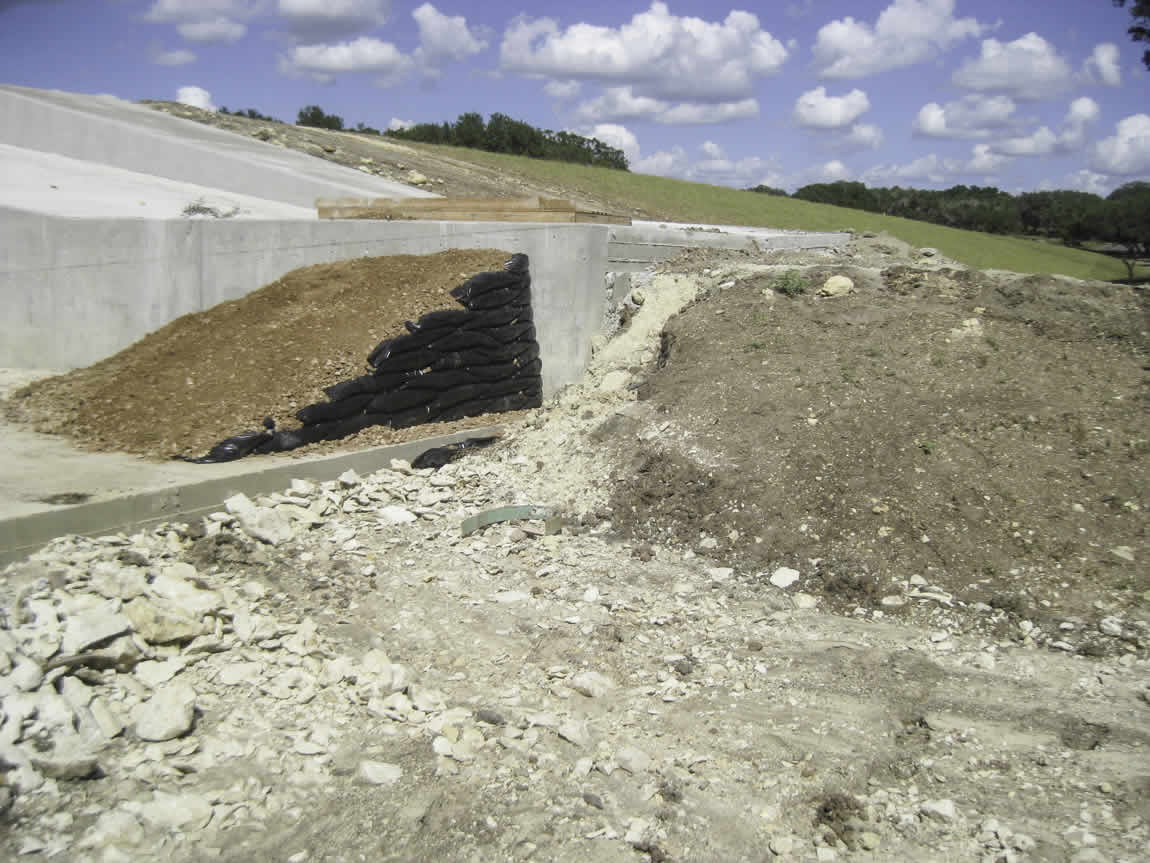

The detention dam facility mitigates the increased runoff from the 250+ acre Singing Hills mixed-use development.
PROJECT DETAILS
- ~10 acres of storage area for rainfall events
- The detention pond has a storage volume of 46 acre-feet. The discharge rate out of the pond for the 100 year storm event is 778 CFS
- Controlled discharge of stormwater to pre-existing natural creek
- The pond reduces the existing Q100 flowrate at the US 281 and SH 46 intersection by approximately 10%. The pond was designed to reduce the discharge rate by approximately 40% better than the regulated design requirement.

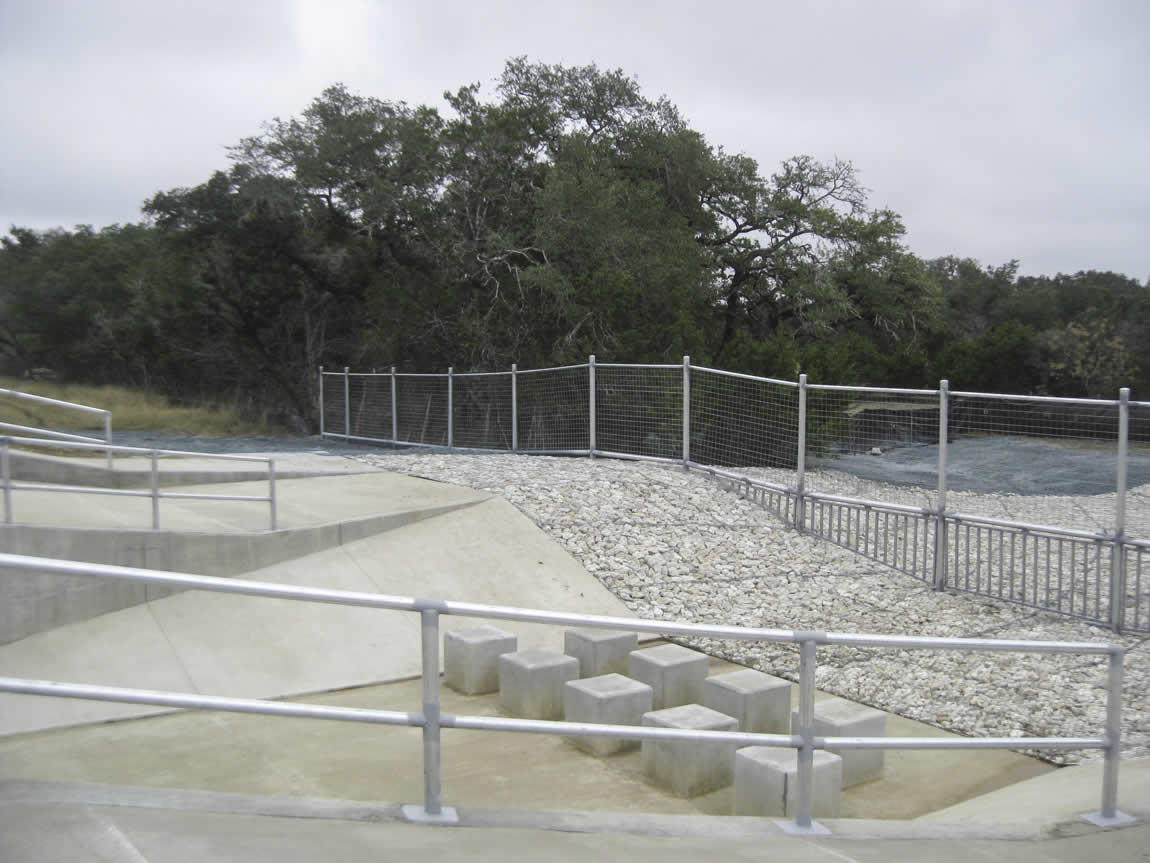

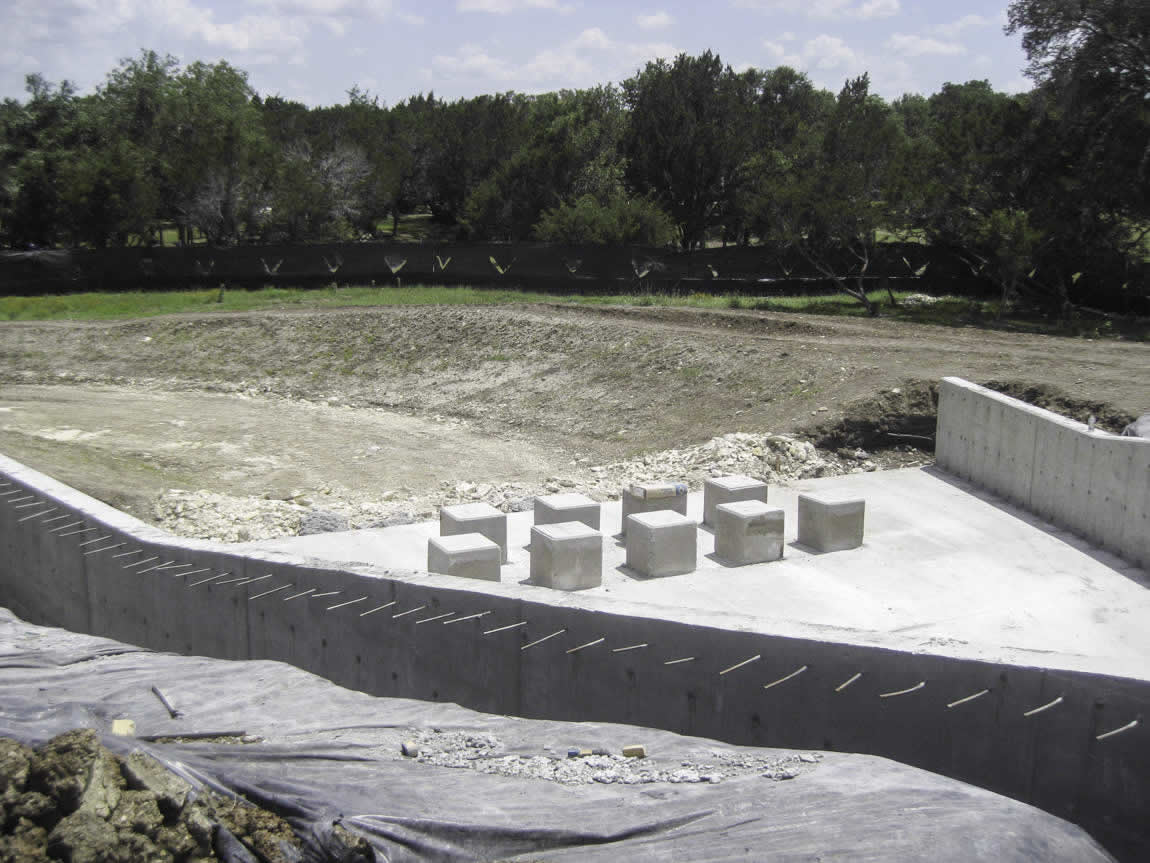

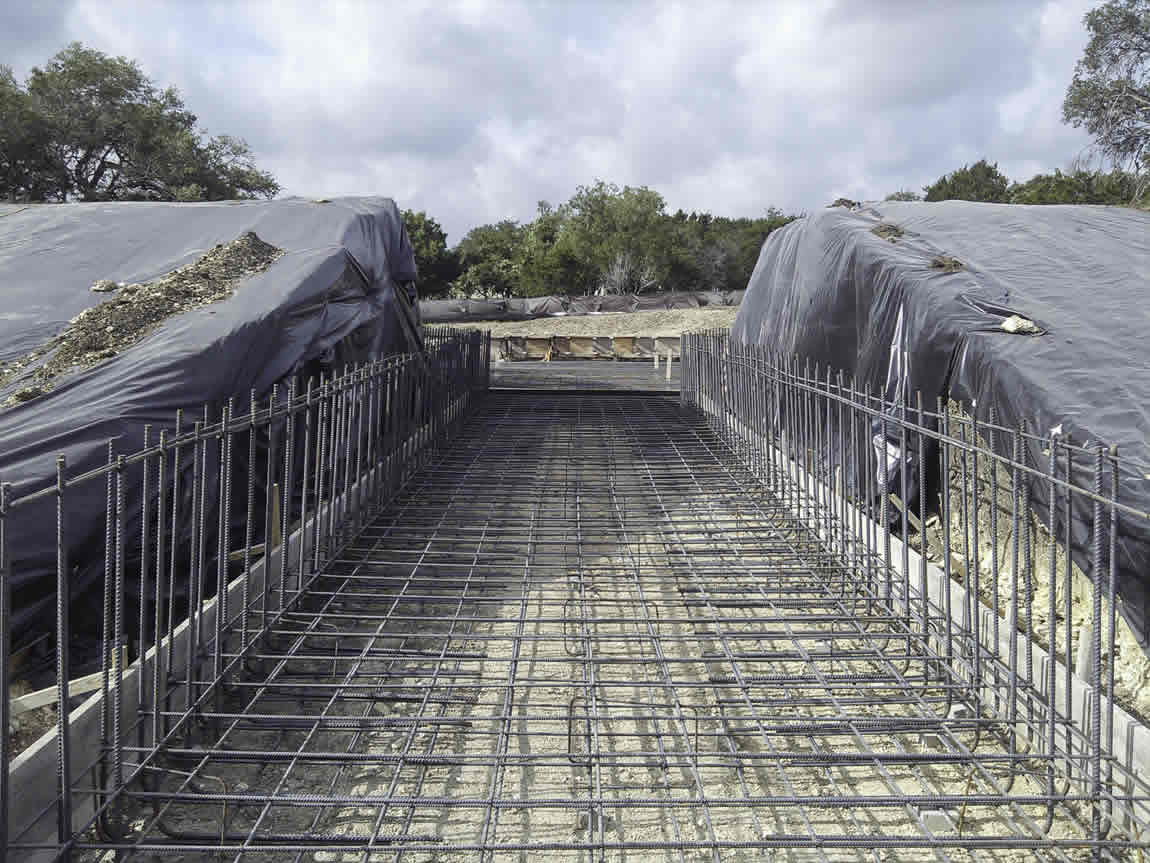

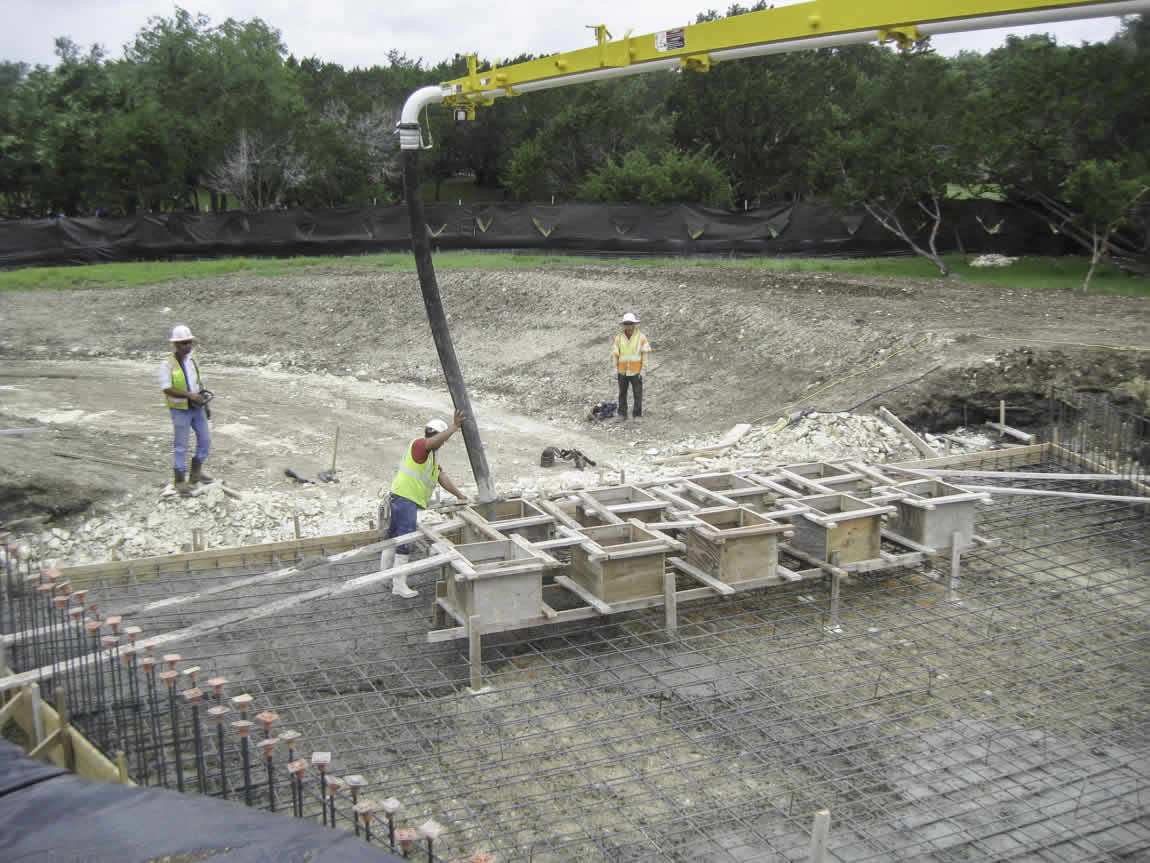

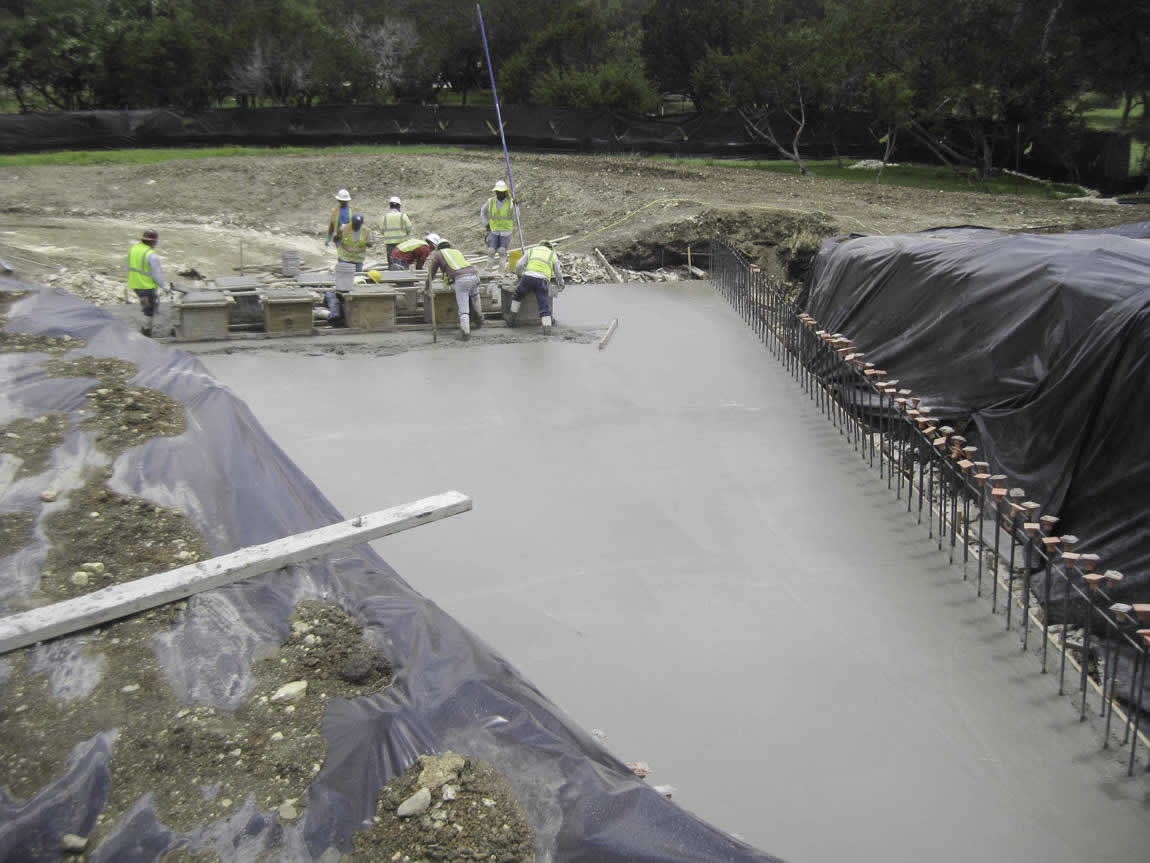

- Includes installation of new swing gates and reinforced fencing as well as a concrete spillway with baffle blocks and rock gabion mattresses for discharge control
Completion Date: January 2015
Owner: SH-DJL Ventures
Engineer: MTR Engineers
Square Footage: N/A
WQP

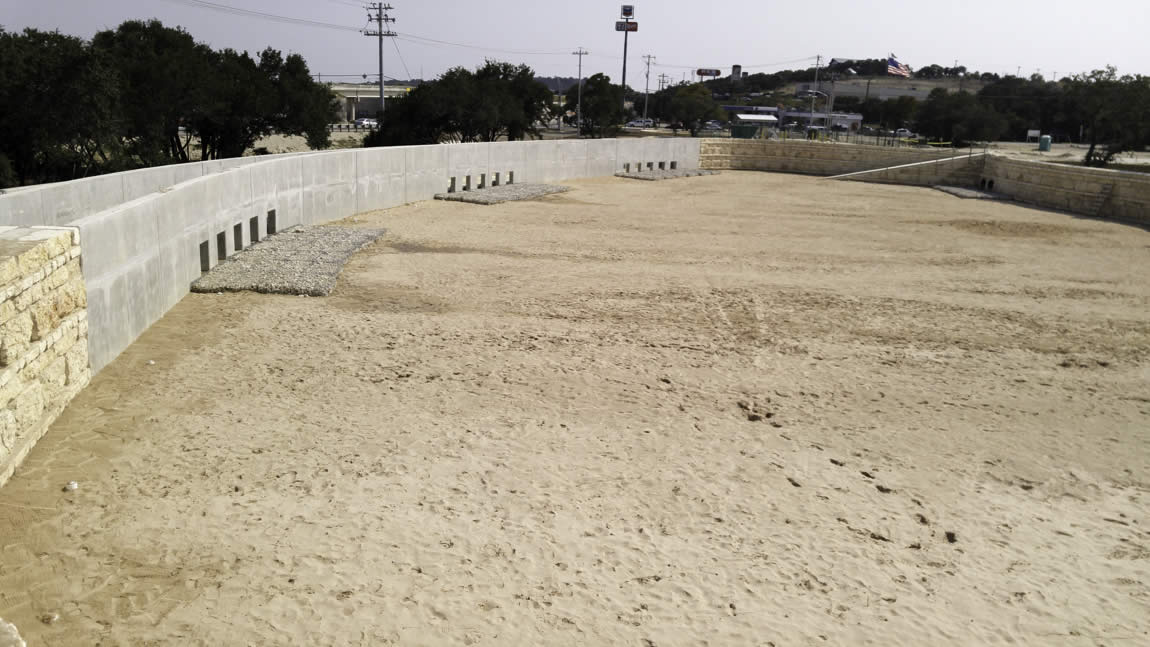

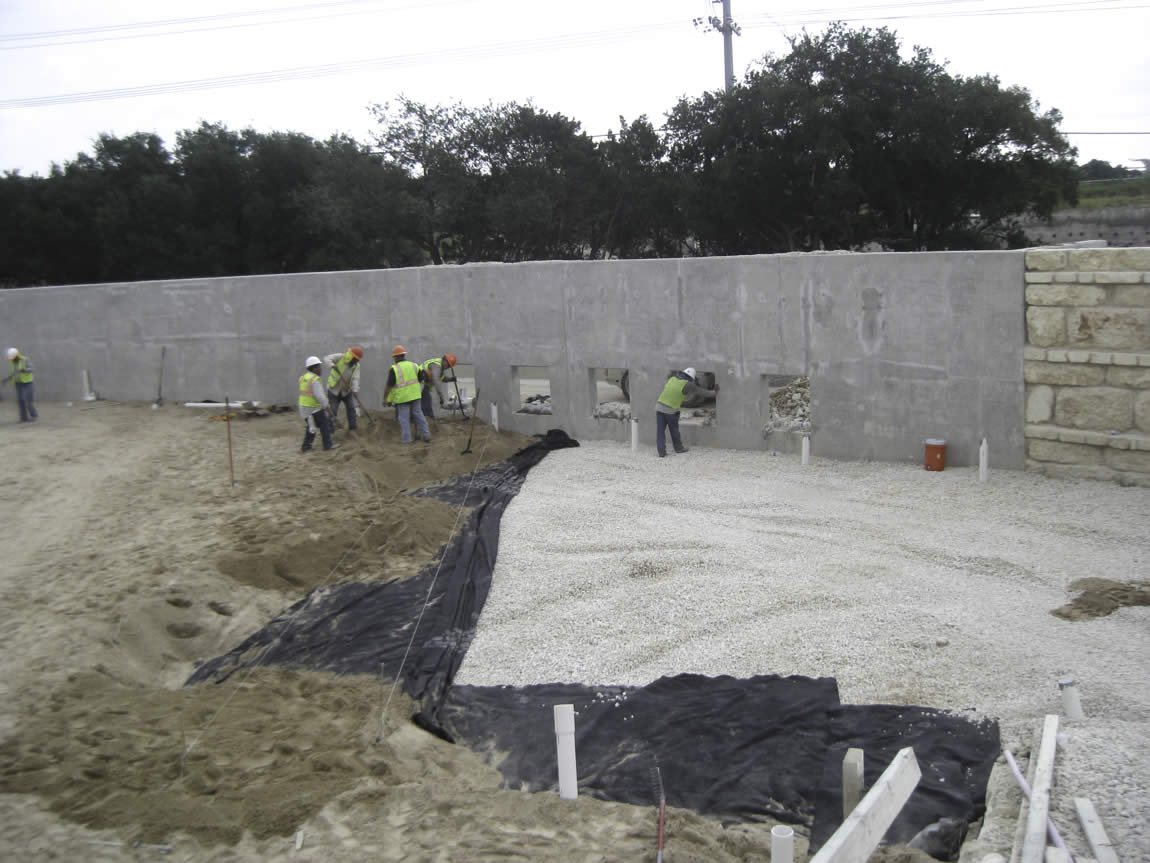

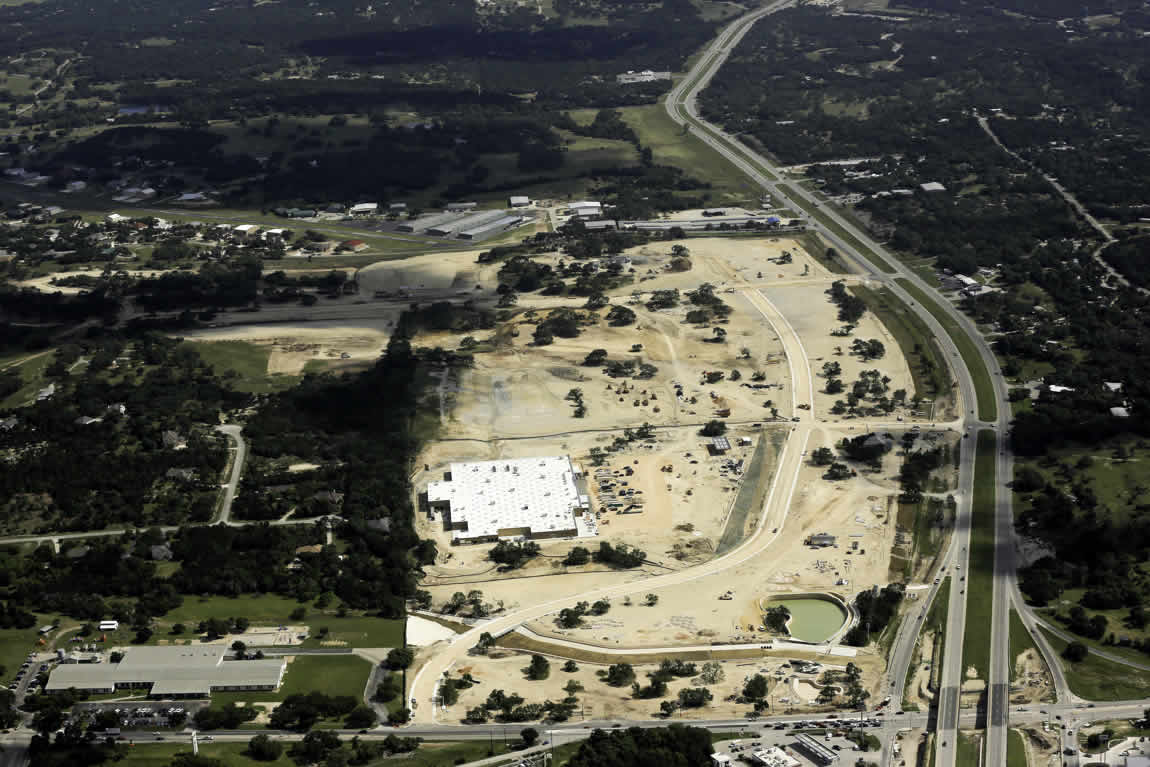

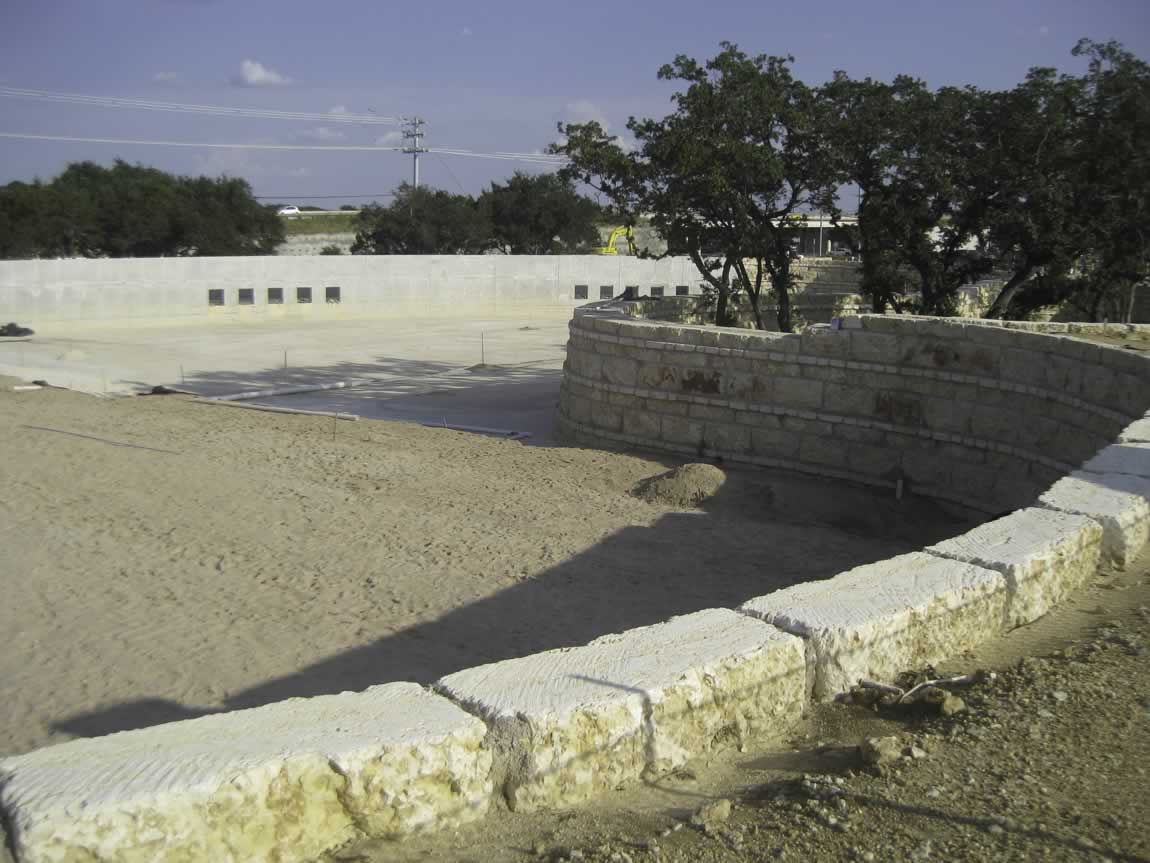

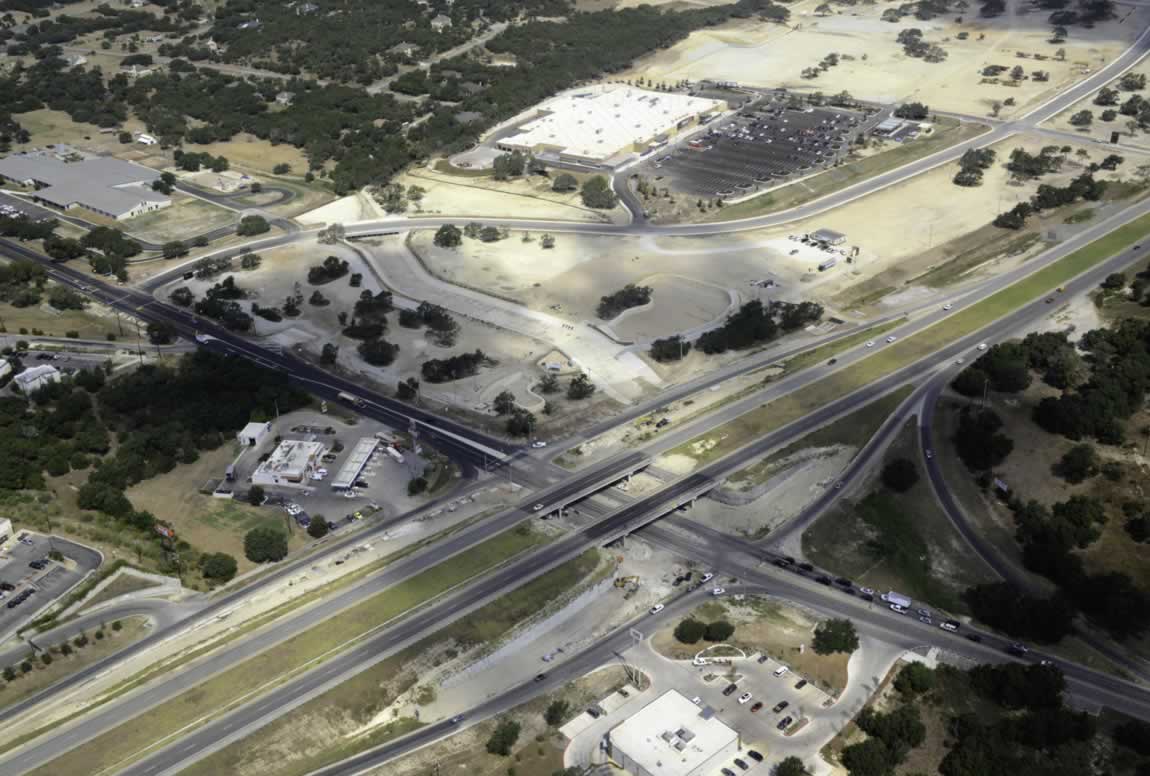

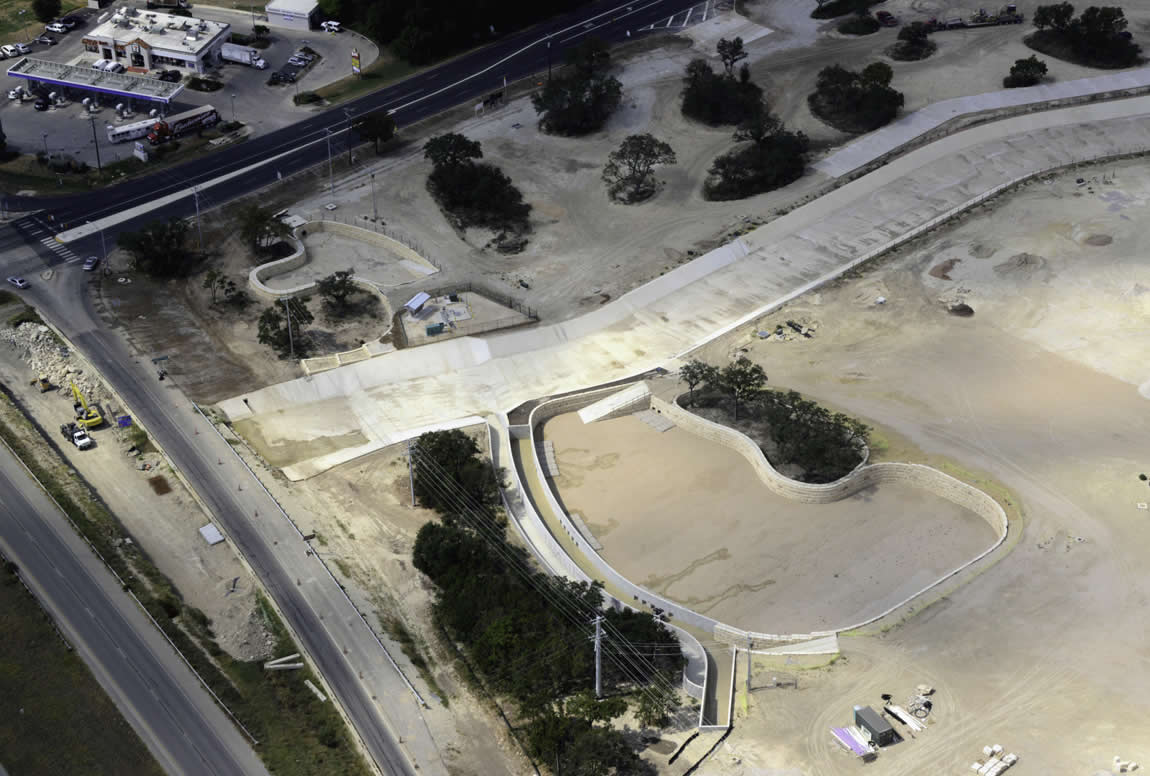

WATER QUALITY POND

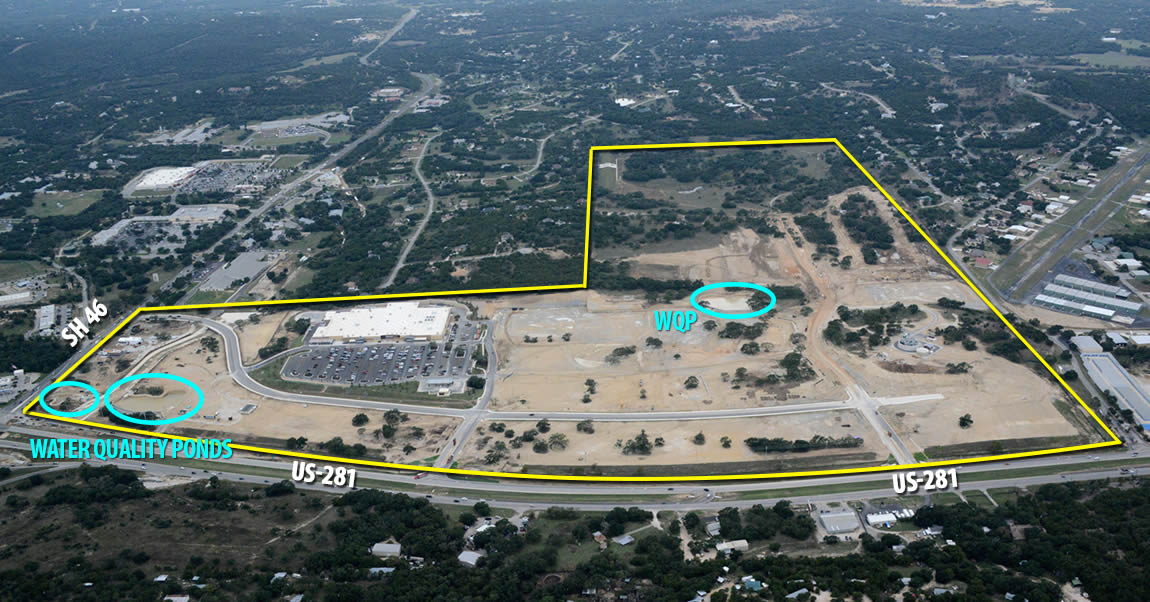

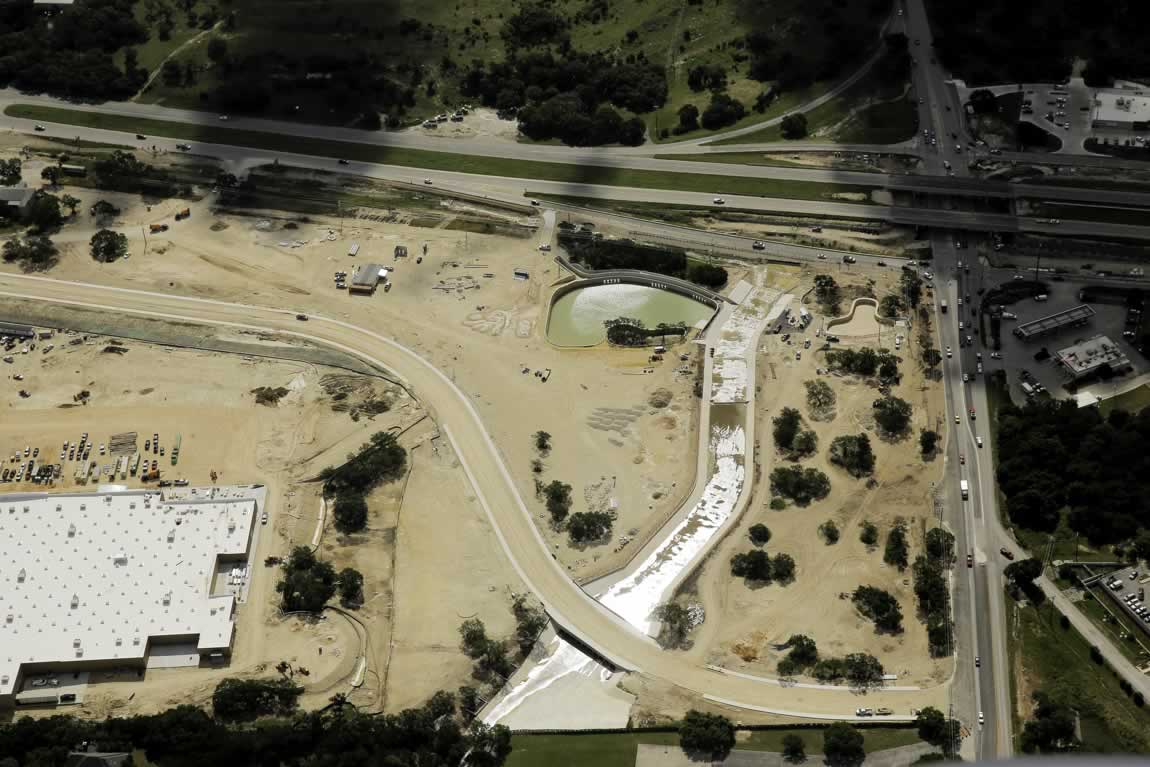

Three ponds total were built to house storm water after rain events and filter any excess materials to allow for clean water discharge from the site.
PROJECT DETAILS
Materials used: limestone rock, concrete, gravel, filter fabric, sand, perforated pipe
Cubic Feet of Water Quality
- WQP#1: 289,408 cu ft
- WQP#2: 35,508 cu ft
- QP#3: 329,712 cu ft
Completion Date: #1 & #2: 10/2015 / #3: 02/2016
Owner: SH-DJL Ventures
Engineer MTR Engineers
Square Footage #1: 36,684 sf / #2: 6,063 sf / #3: 41,837 sf

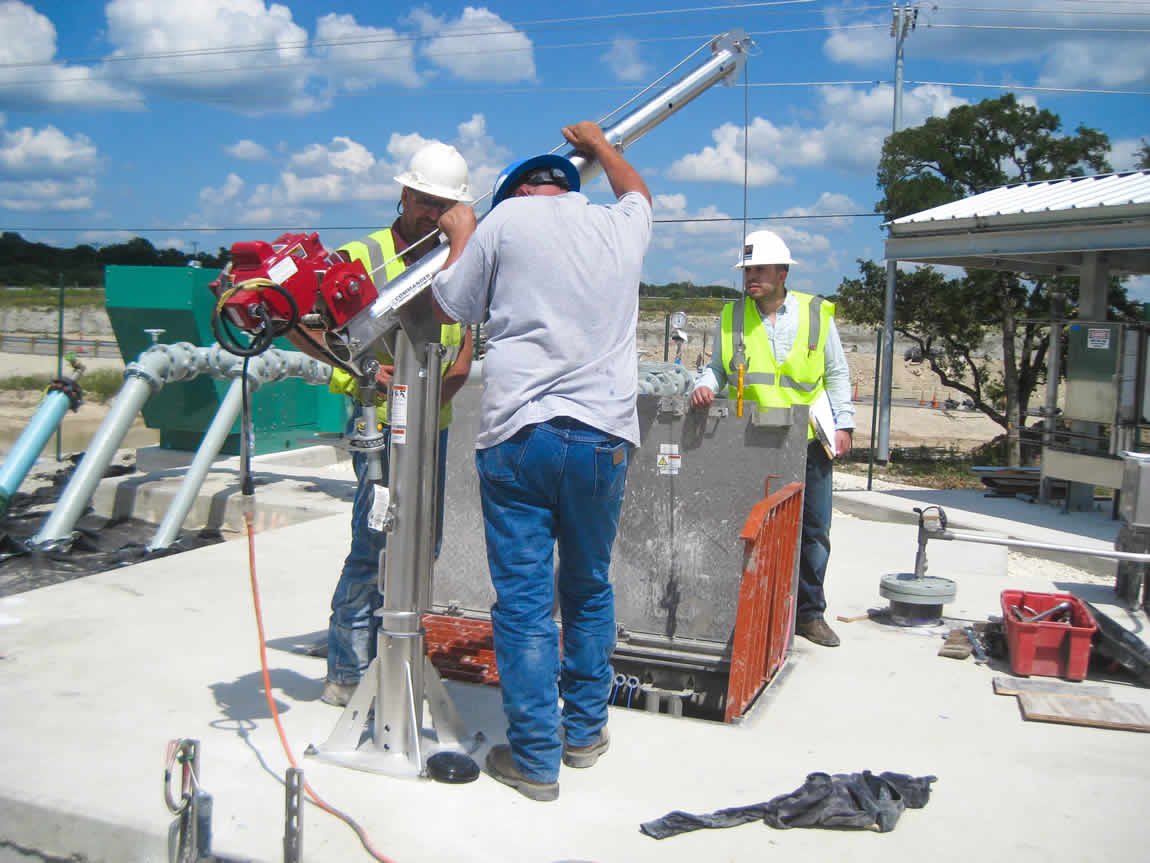

WWTP

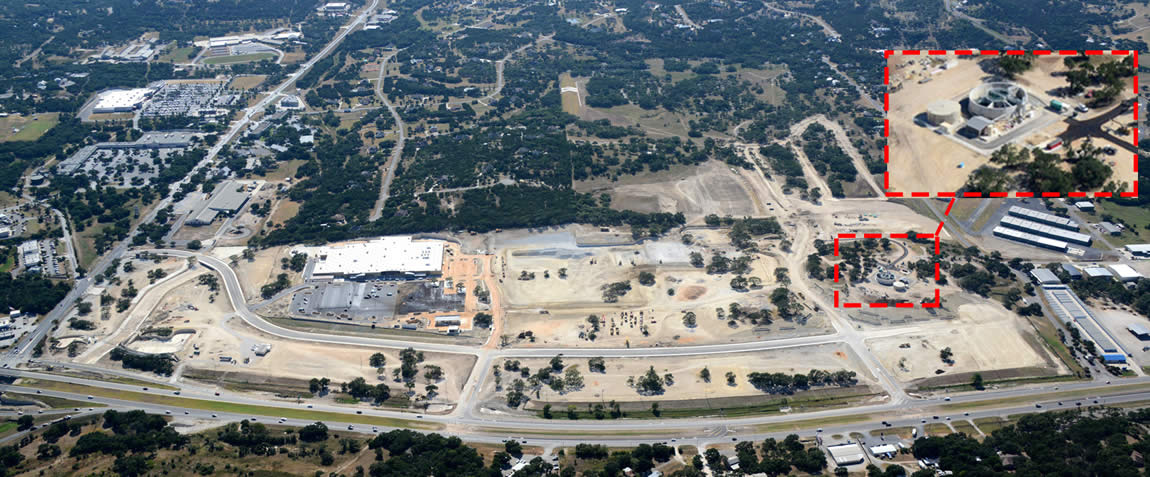

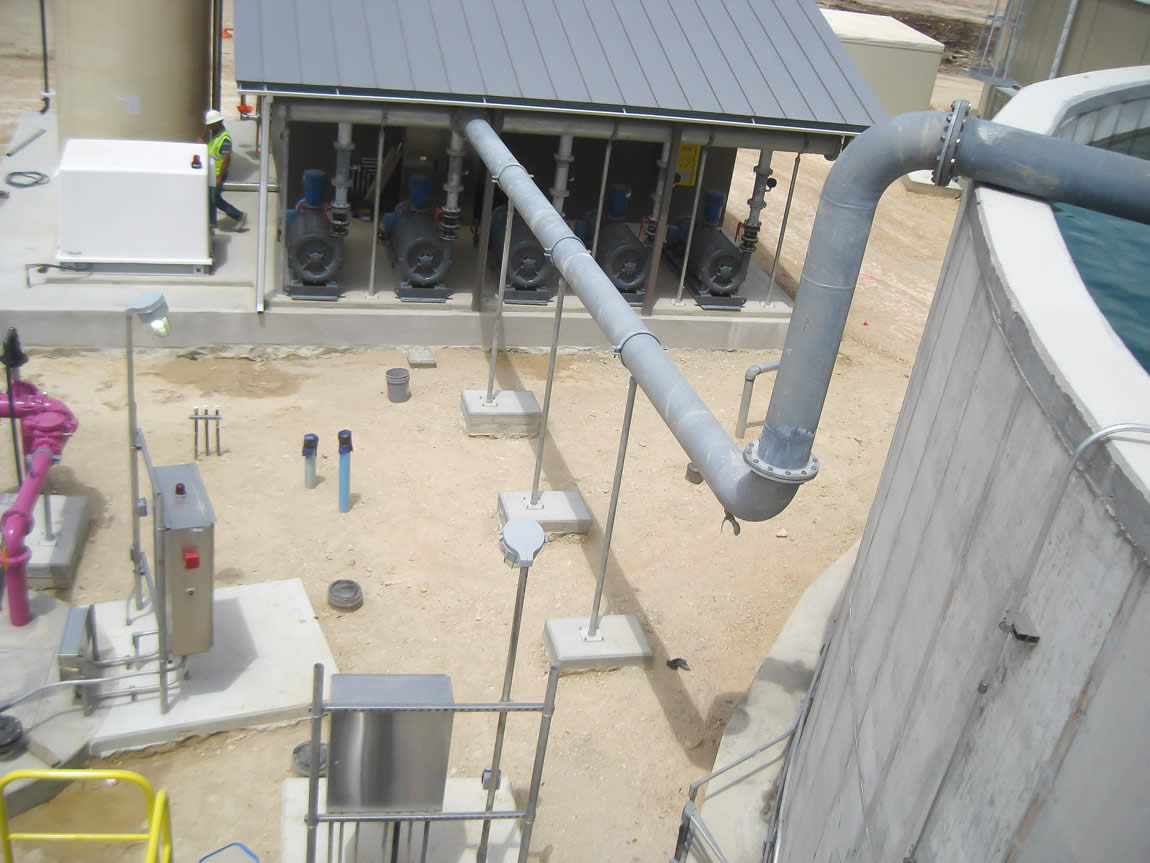

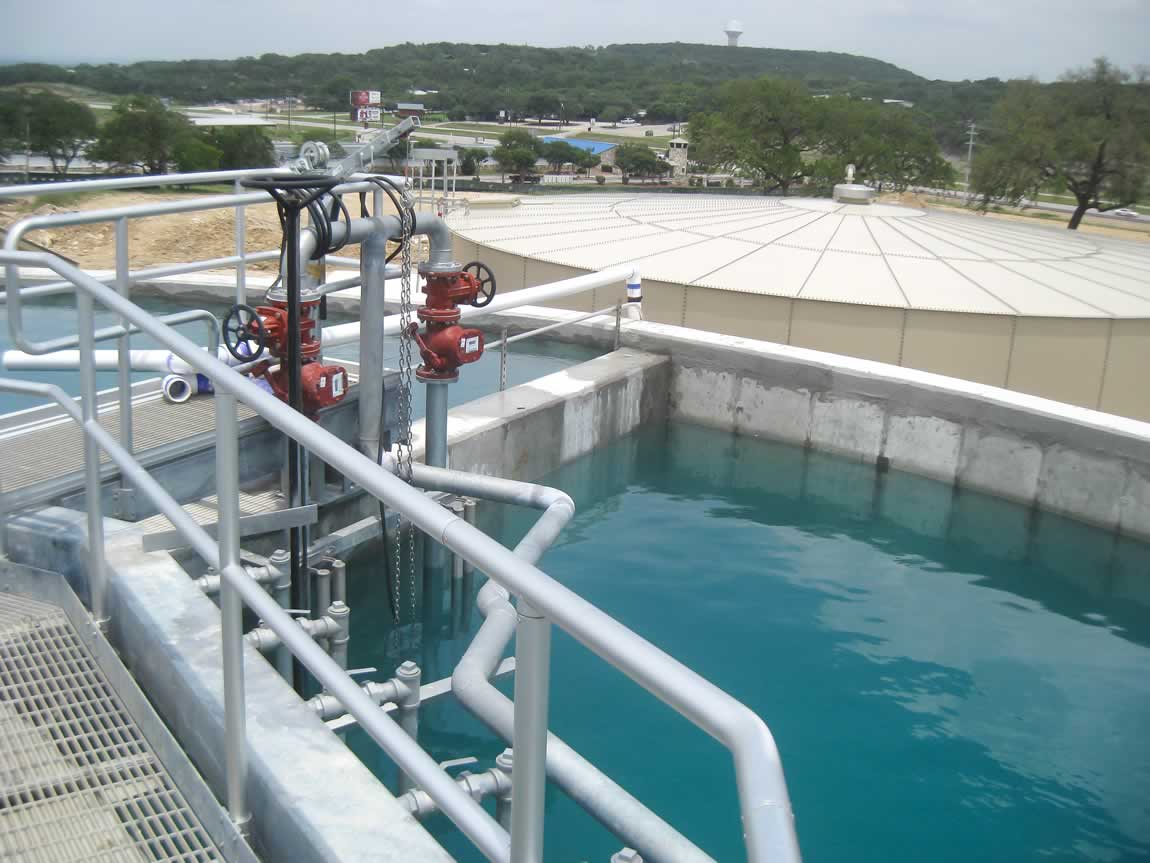

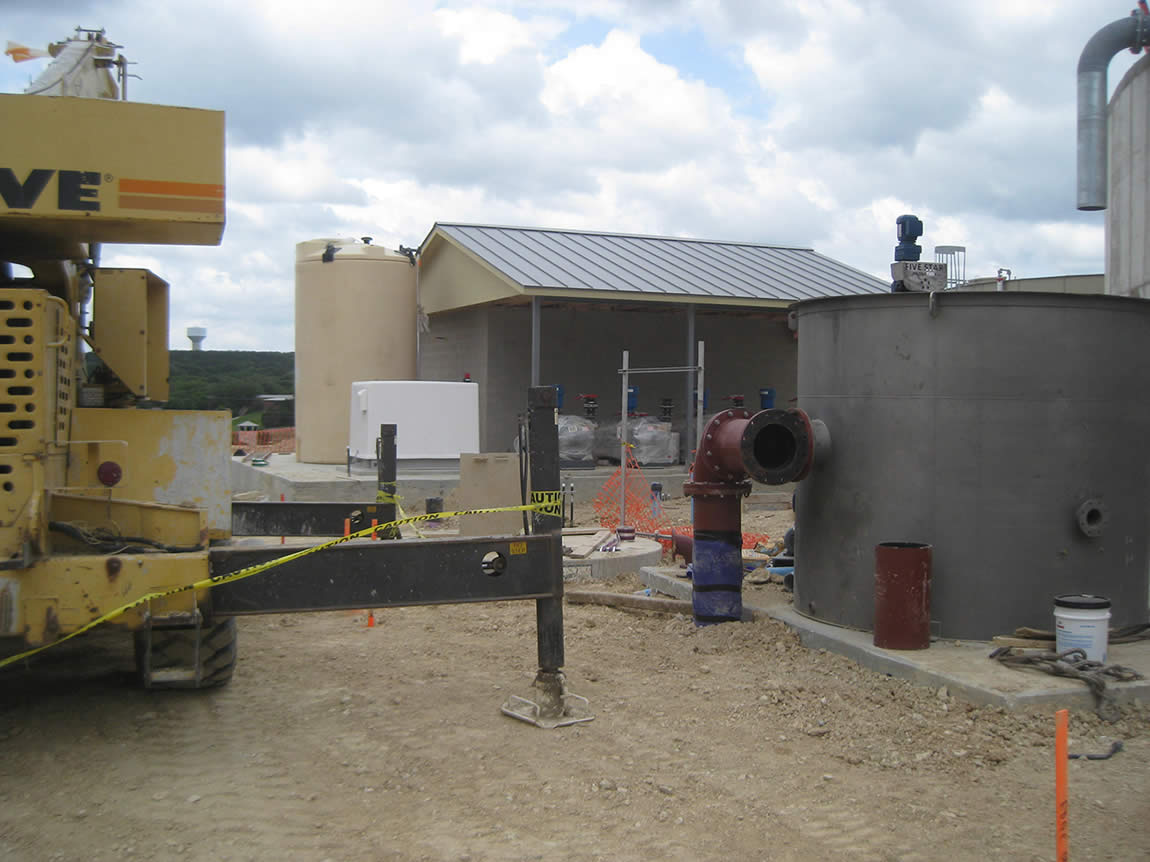

WASTE WATER TREATMENT PLANT

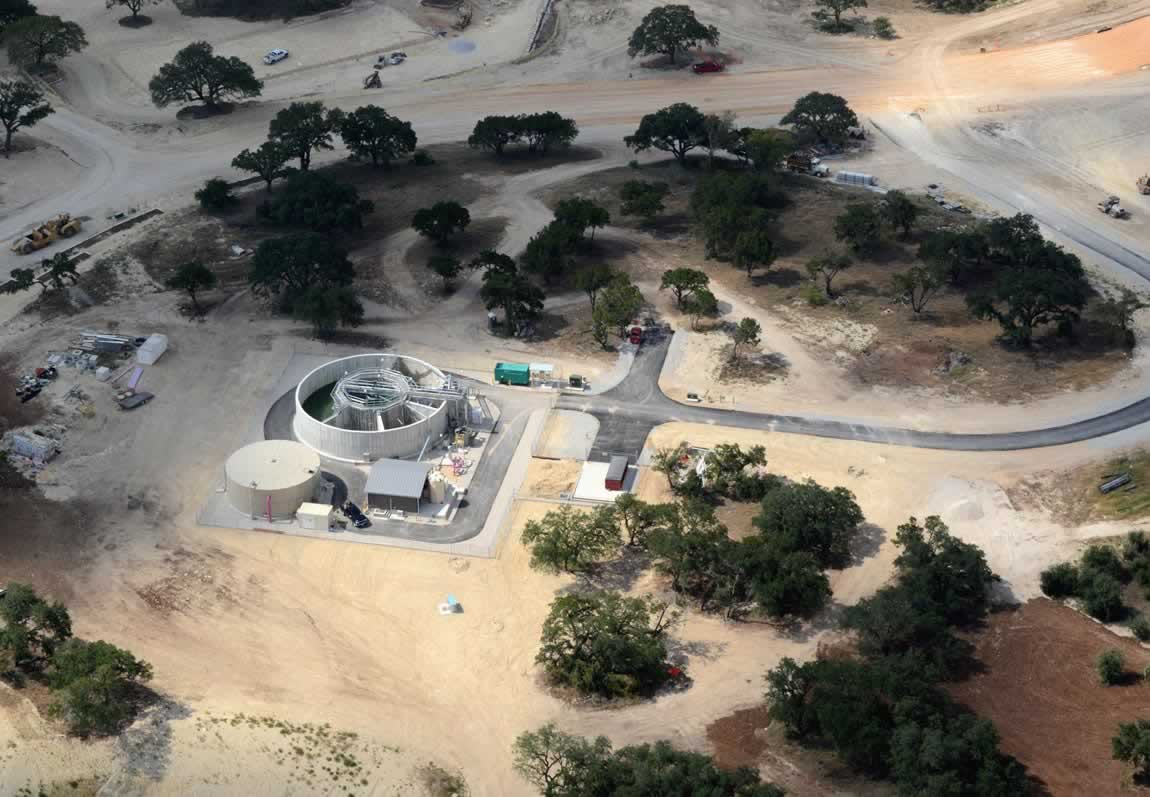

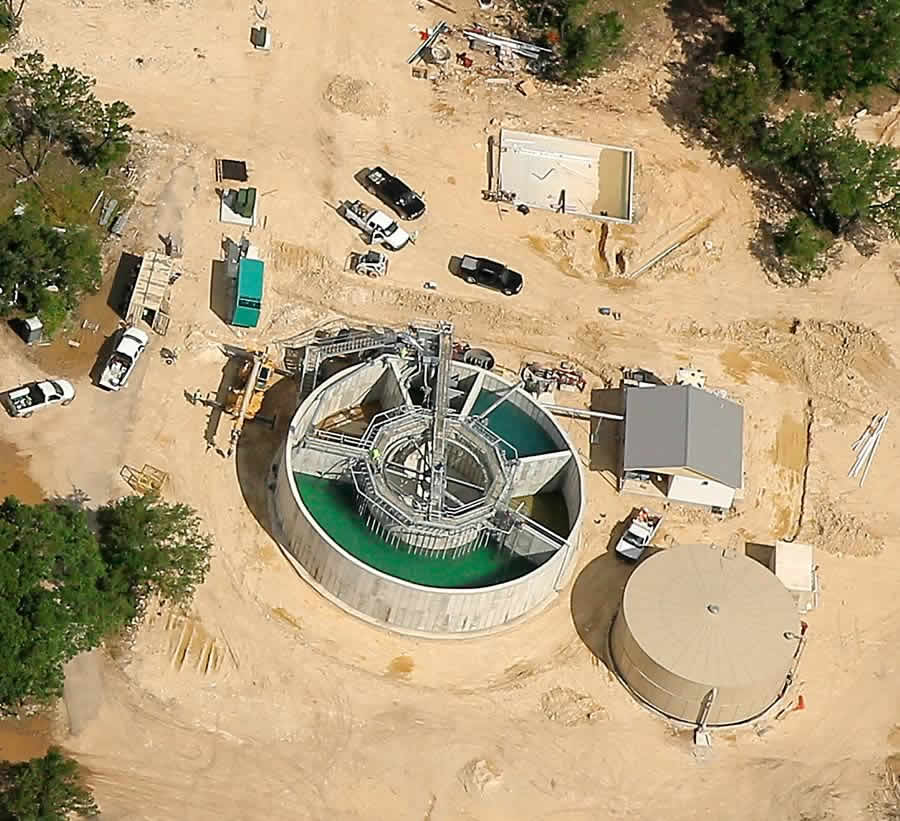

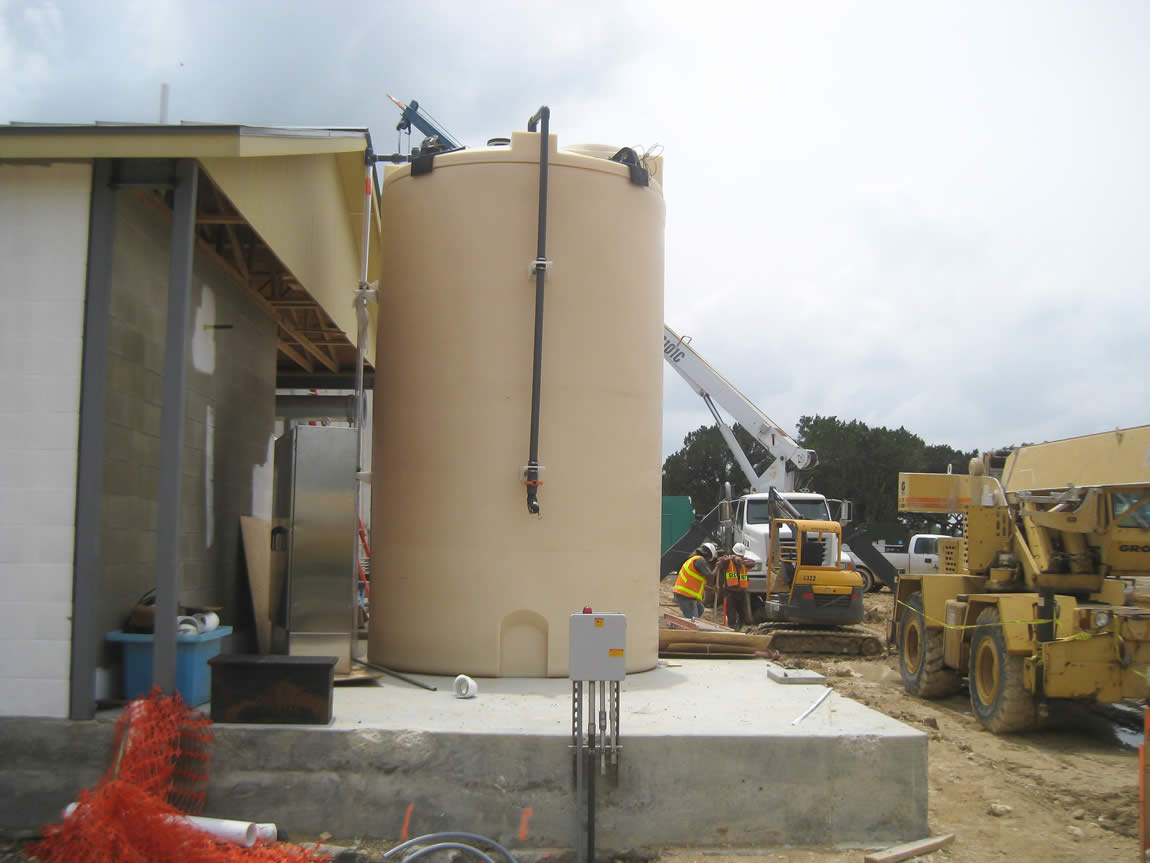

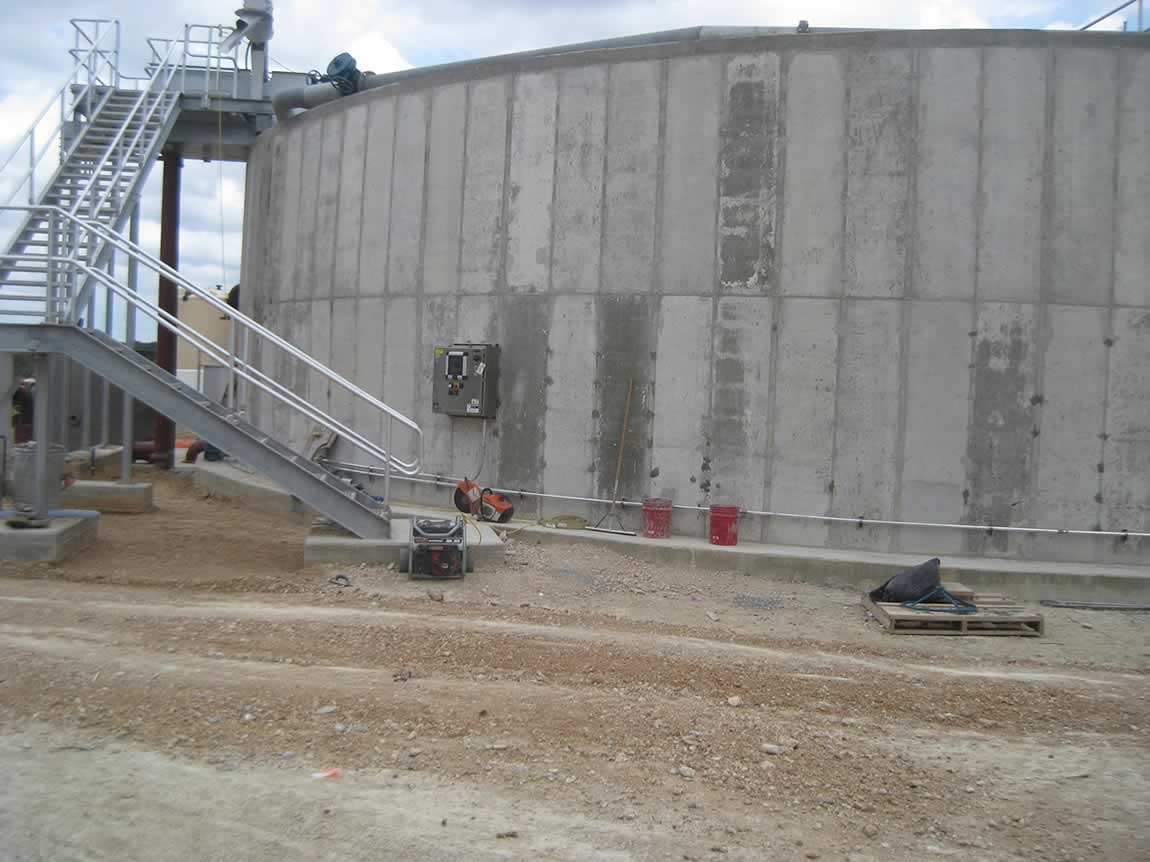

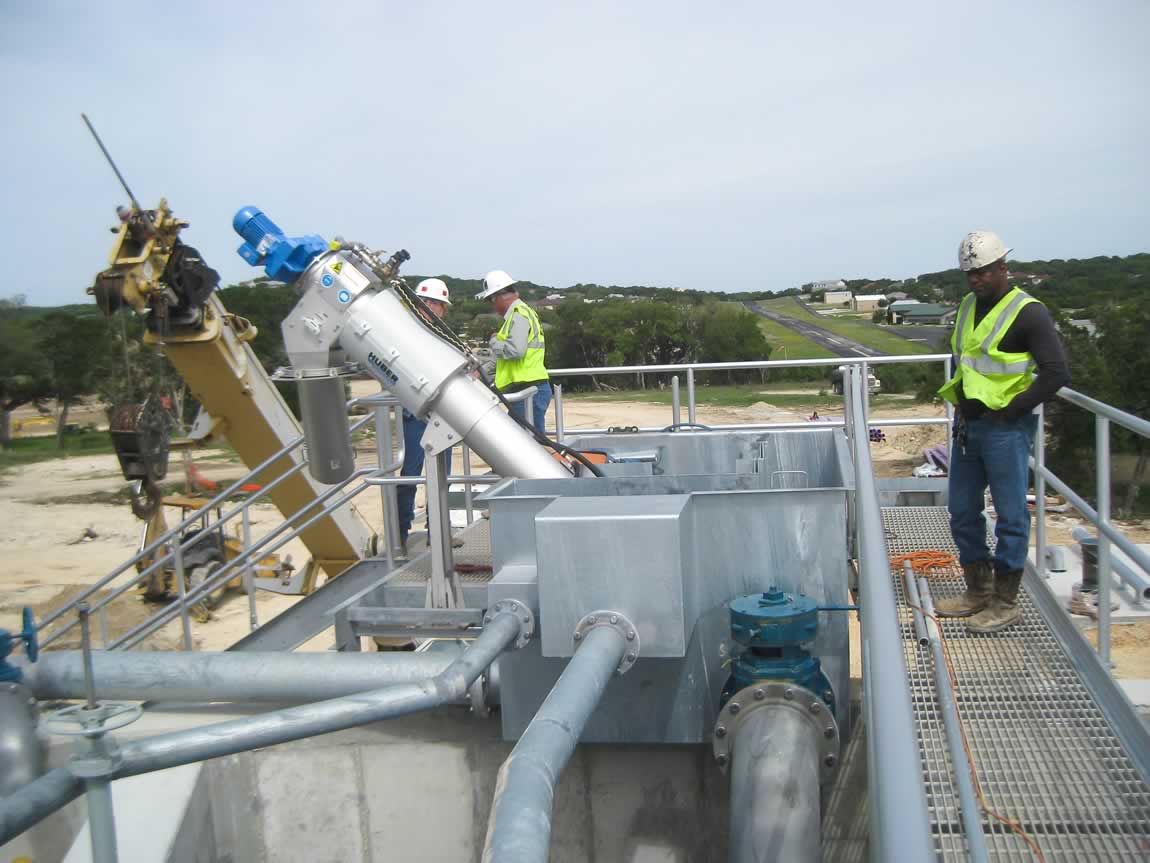

A 240,000 gallon per day (gpd) waste water treatment plant was built on three acres within the development.
PROJECT DETAILS
- 240,000 gallons per day (gpd)
- Located on 3 acres
- Expandability: Planned regional expansion to 750K gpd
- Granted a 210 Reuse Authorization permit which allows the treated effluent to be re-used on site (i.e. re-irrigation)
- Transferable title to City of Bulverde/GBRA for operation and ownership
- Recycled Water System: The recycled water will be distributed to end users through a metered system that can generate revenues for the Owner/Operator.
- Collection System: both gravity and forced main engineered into waterwater collection system.
- Lift Station: pumps effluent to the WWTP from gravity mains
- SCADA:
- Offsite monitoring & control
COMPLETION DATE: July 2015
Owner: SH-DJL Ventures
Engineer: WWD Engineering

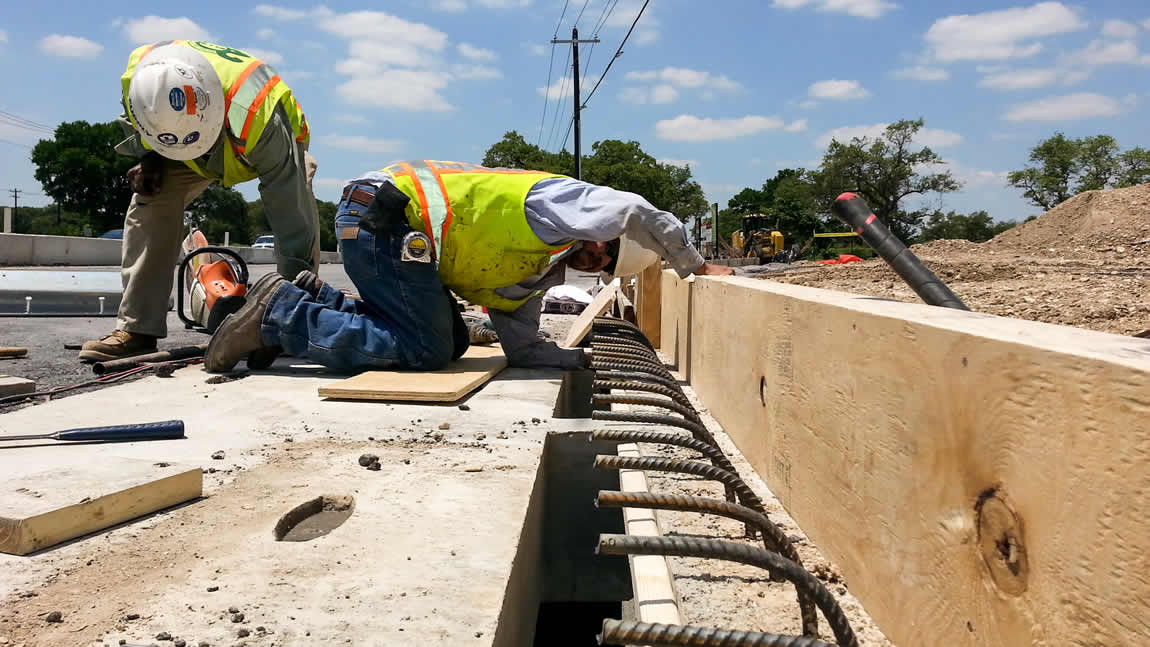

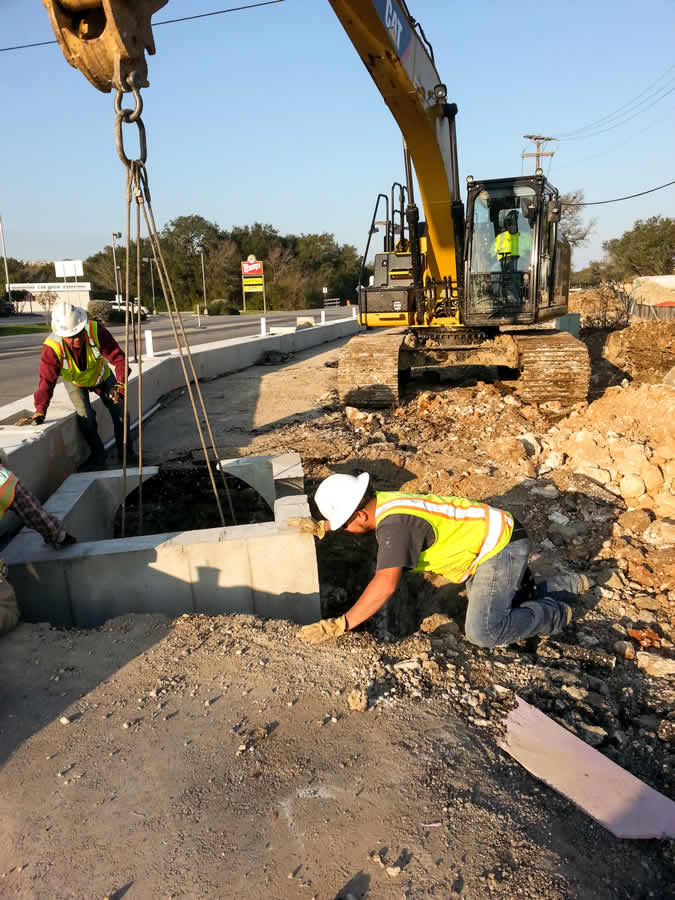

TXDOT

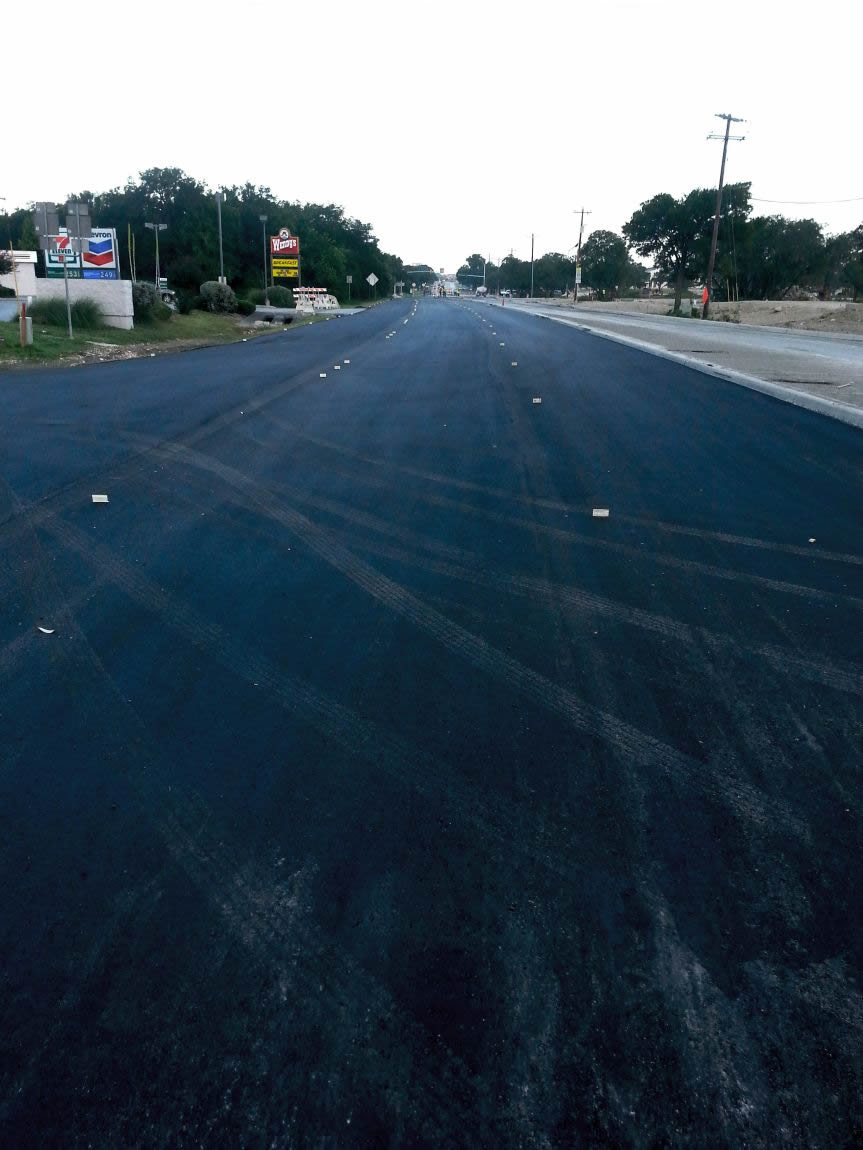

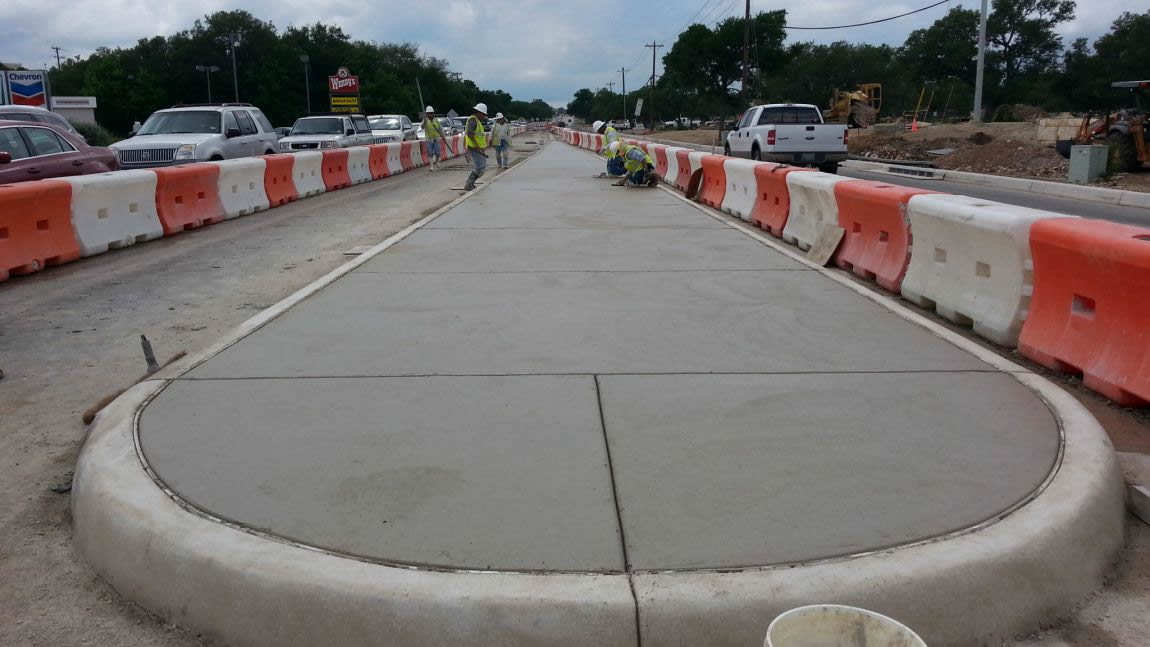

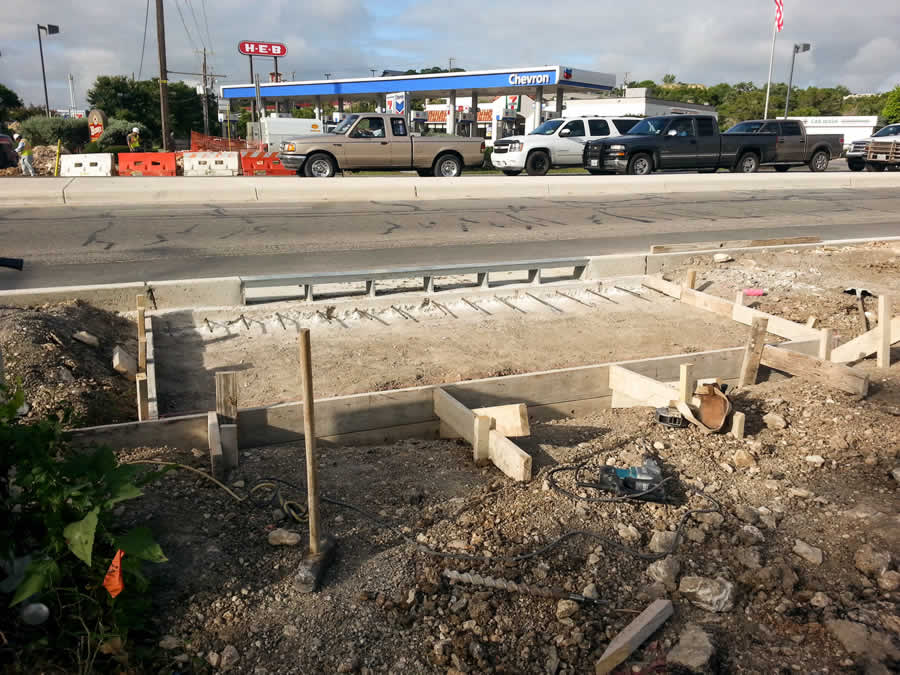

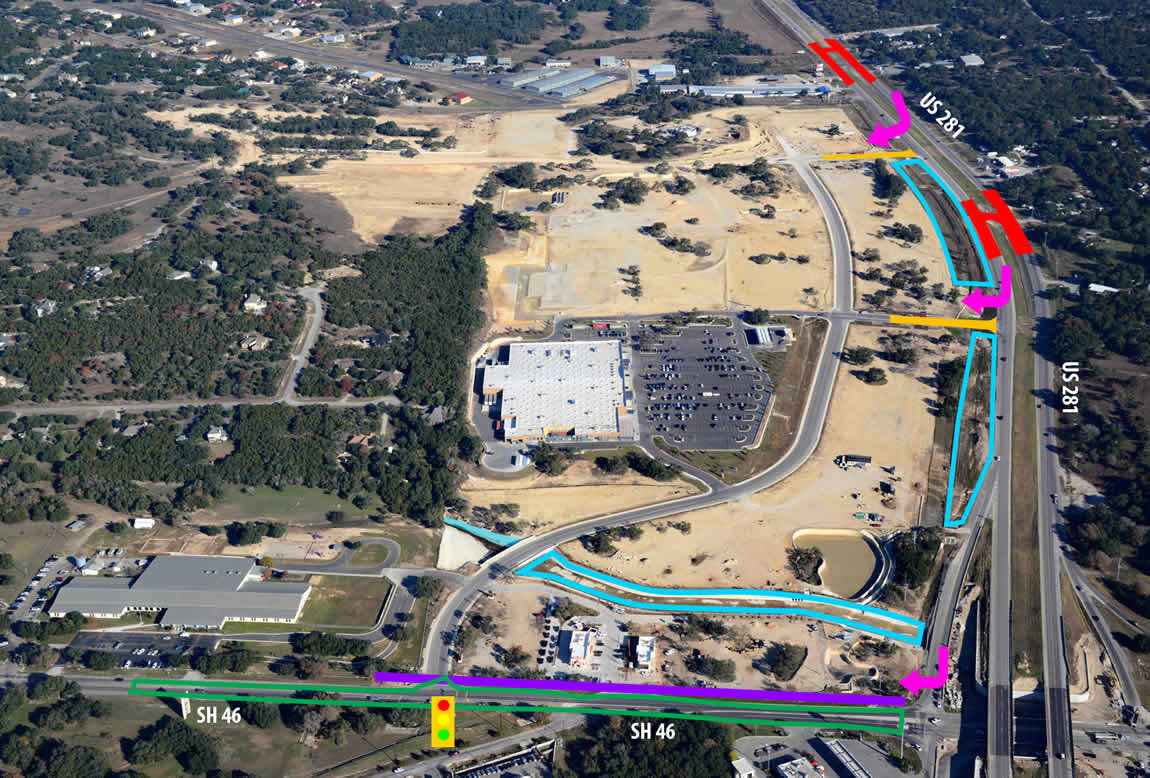

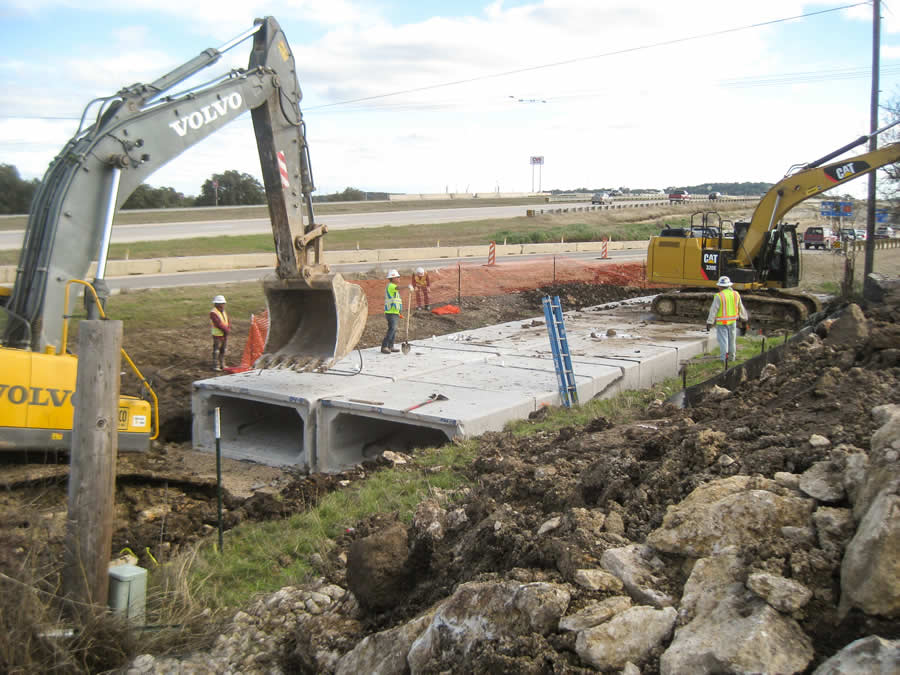

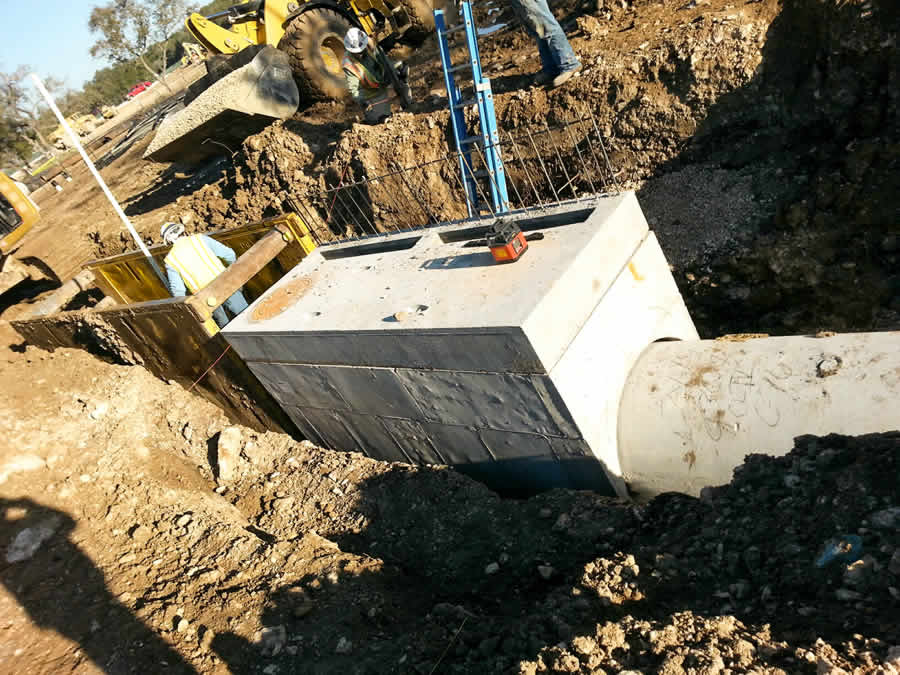

TXDOT ROADWAY IMPROVEMENTS
- Traffic Control / Signage / Pavement Markings
- Erosion Control / SWPPP
- Tree Removal / Tree Protection / Sod Installation
- Earthwork / Base / Asphalt

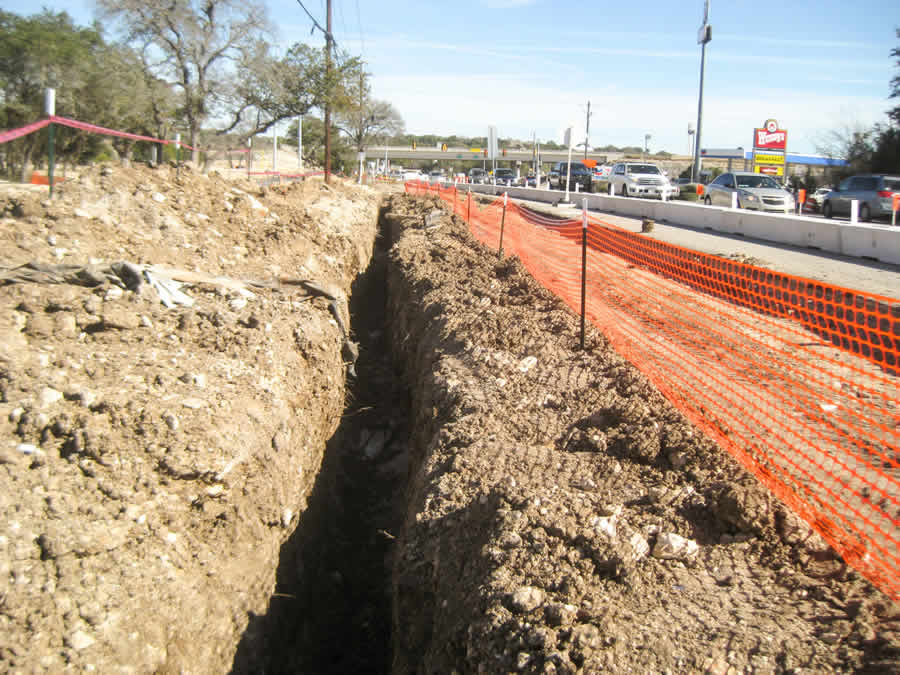

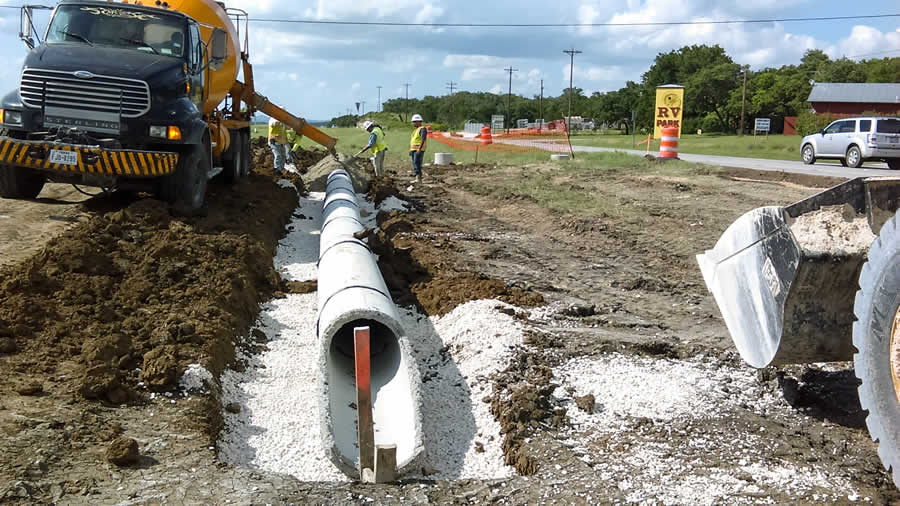

- Site Utilities / Storm Water Drainage
- Concrete
- Signalization
State Highway 46:
- Traffic signal at proposed Singing Oaks intersection
- Pavement widening on the north side of SH 46 from west side of US 281 exit ramp to the proposed Singing Oaks intersection to accommodate two through lanes and one right turn lane
- Minor roadway widening to maintain the existing eastbound shoulder width
- Raised median from the west side of US 281 exit ramp to Old Boerne Road

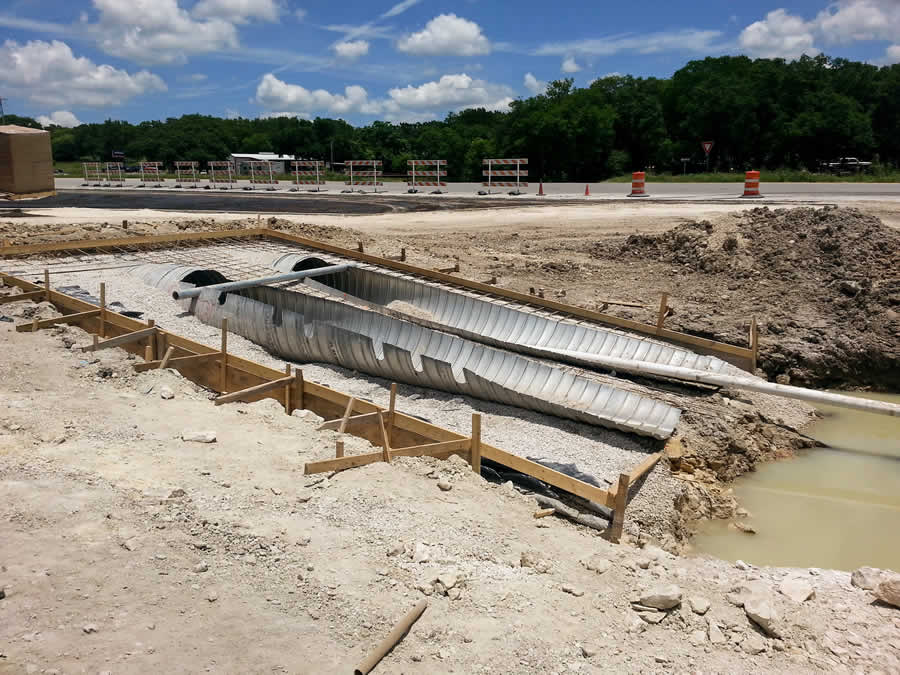

- Storm sewer system on the north side of SH 46
- Relocation of existing school zone flashing signal
- Restriping for roadway and intersection operational improvements
US Highway 281:
- Two super street U-turn lanes with single left turn lanes
- Installation of traffic signal foundations with underground electrical at two locations
- Three right-turn deceleration lanes
- Two new driveways entering the development
COMPLETION DATE: US 281: 7-21-2015 / SH 46: 2-9-2015
Owner: SH-DJL Ventures
Engineer: MTR Engineers / Sanchez & Salazar & Associates / CEC Group
